COMPETITION INTERCOOLER KIT:
Hyundai I20 N 150KW/204PS (2021-)

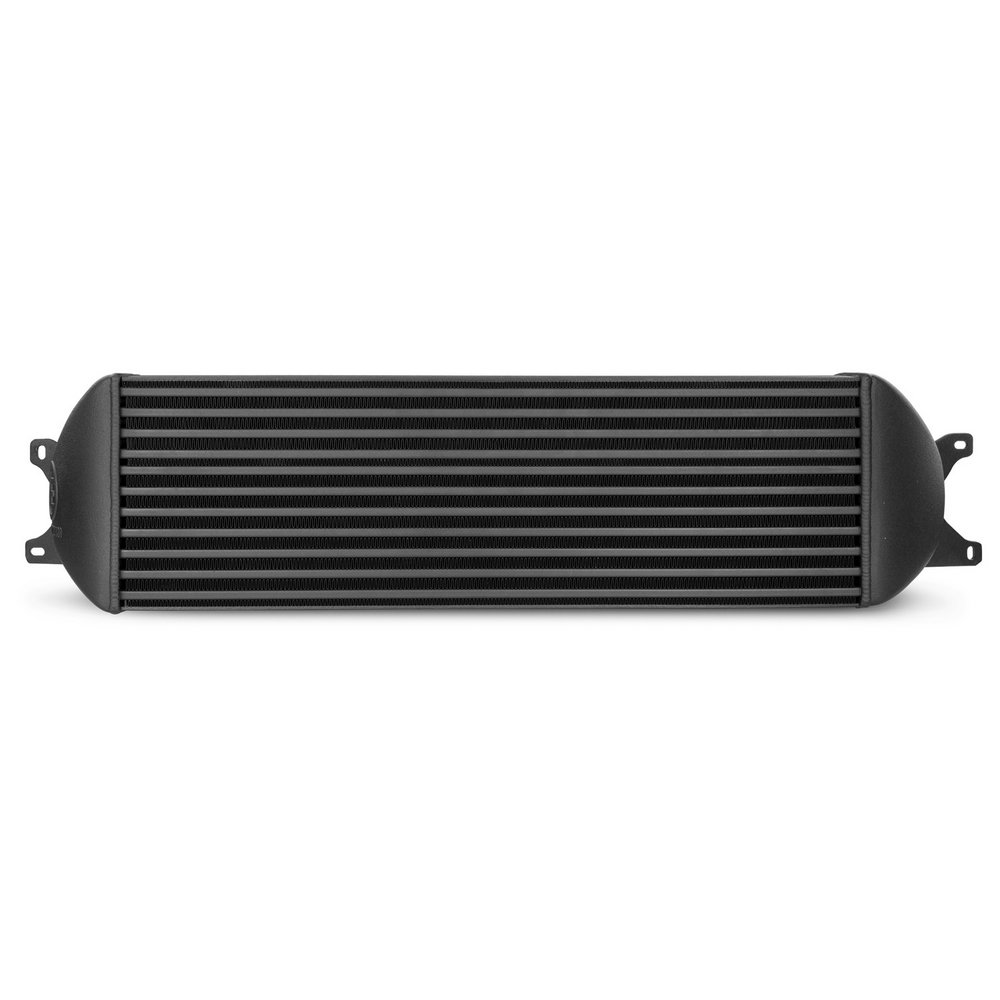

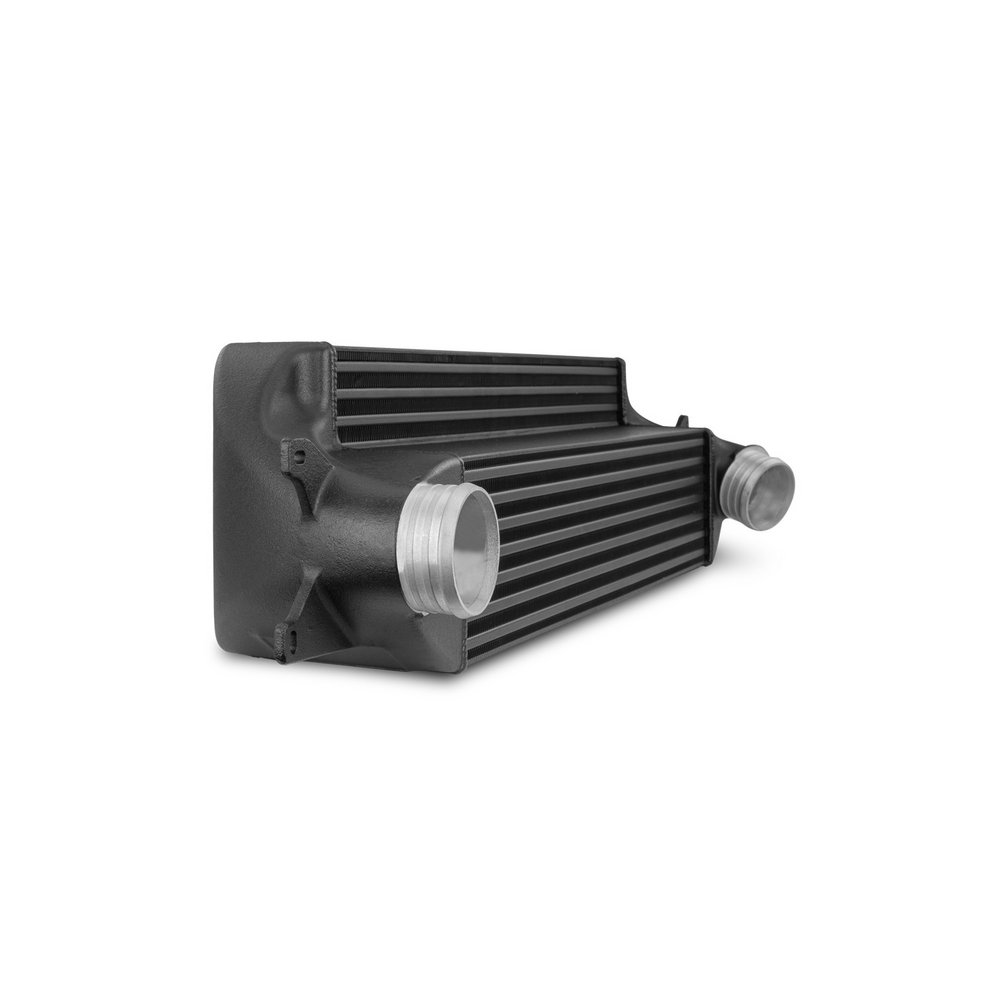

The WAGNERTUNING high-performance intercooler has got a new competition core (Tube Fin) with the dimensions 580 mm x 181 mm x 70 mm + 580 mm x 120 mm x 80 mm (stepped core: 12,9 liters) / 22,83Inch x 7,12Inch x 2,75Inch + 22,83Inch x 4,72Inch x 3,15Inch (stepped core: 787,2Inch³) , which was developed especially for the requirements of the Hyundai Veloster N. This high-performance core offers an 46 % larger frontal surface and 98 % more core volume compared to the stock intercooler.

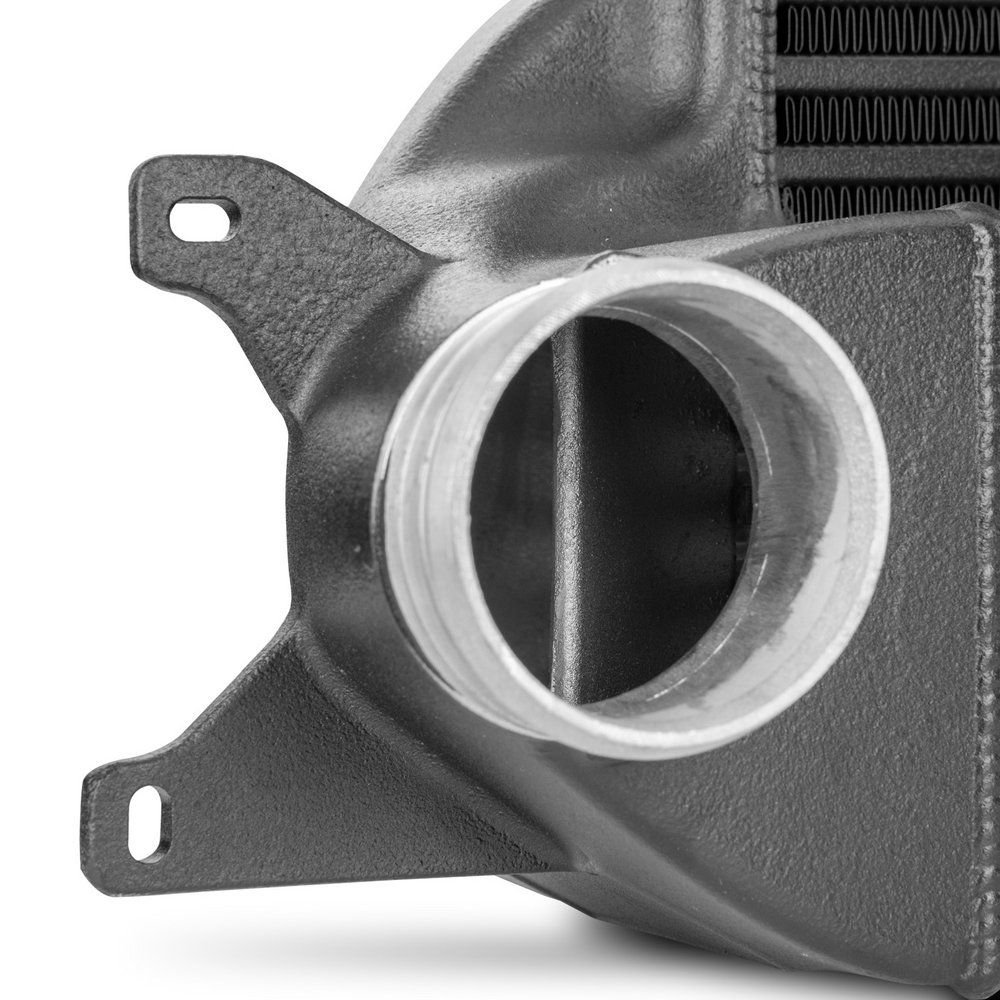

The aluminium cast endtanks were designed in CAD and optimised in CFD simulations (for an ideal internal airflow). The result is a excellent cooling property with a minimal back pressure. The newly developed performance core provides the adjoining components (for example the watercooler) enough air flow. That`s why this kit is perfect for racing use. An optimal cooling effect of the charged air with a significant increase in performance!
An anti-corrosion powder coating with perfect heat-conducting properties protects the WAGNERTUNING intercooler from all environmental influences, so a lasting and optimal cooling effect can be guaranteed. The installation is done by replacing the original intercooler and is easy to perform (plug and play). All our products are subject to a continuous quality monitoring.
Inlet diameter: Ø65 mm ; Outlet diameter Ø65 mm
Details stock intercooler:
V = 6,5 L / 396,65Inch³
A = 720 cm² / 111,6Inch²
Details WAGNERTUNING intercooler:
V = 12,9 L / 787,2Inch³ (+98%)
A = 1050 cm² / 162,75Inch² (+46%)
G = 8,5kg

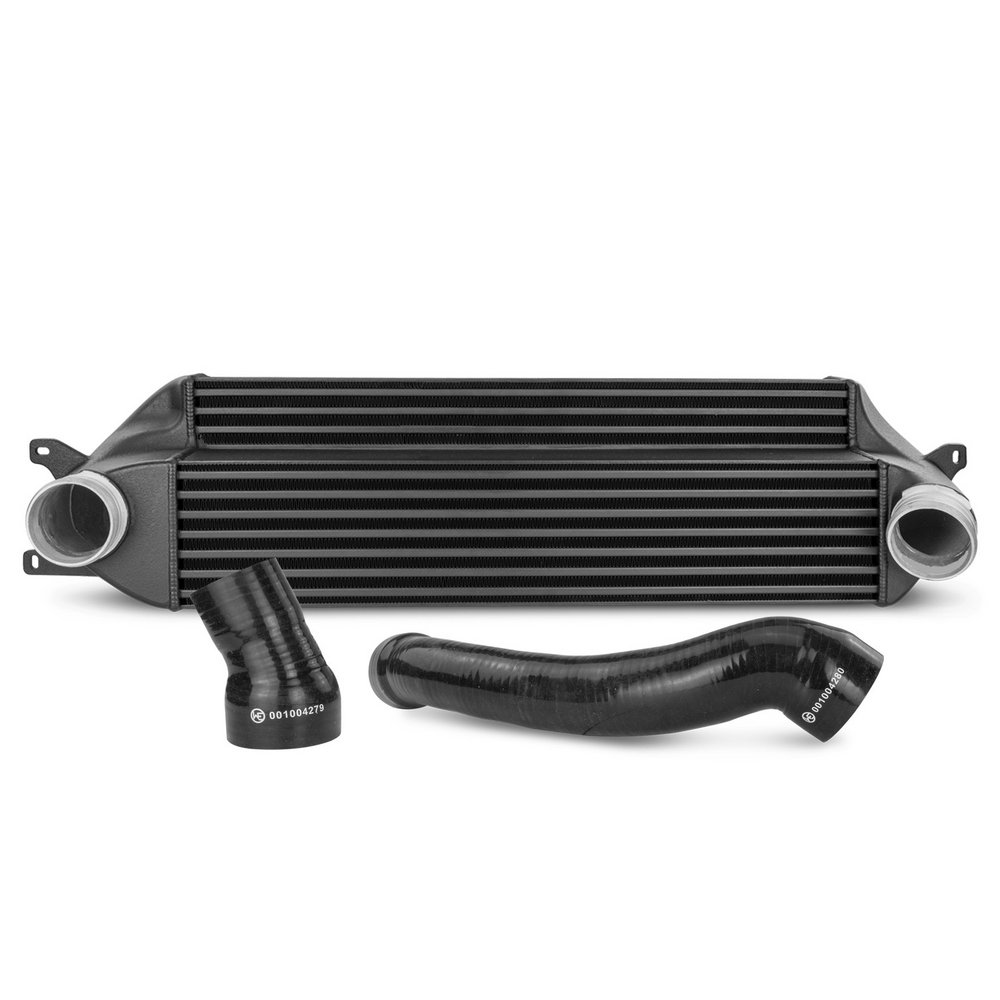

This kit comes with:
2 silicone hoses (black)
4 hose clamps HD
1 installation instruction
