Competition INTERCOOLER KIT for Suzuki Swift Sport 1.4 Turbo
Suzuki Swift 1.4 Boosterjet 103KW/140PS (2018-2020)
Suzuki Swift 1.4 Boosterjet Hybrid 95KW/129PS (2020-)

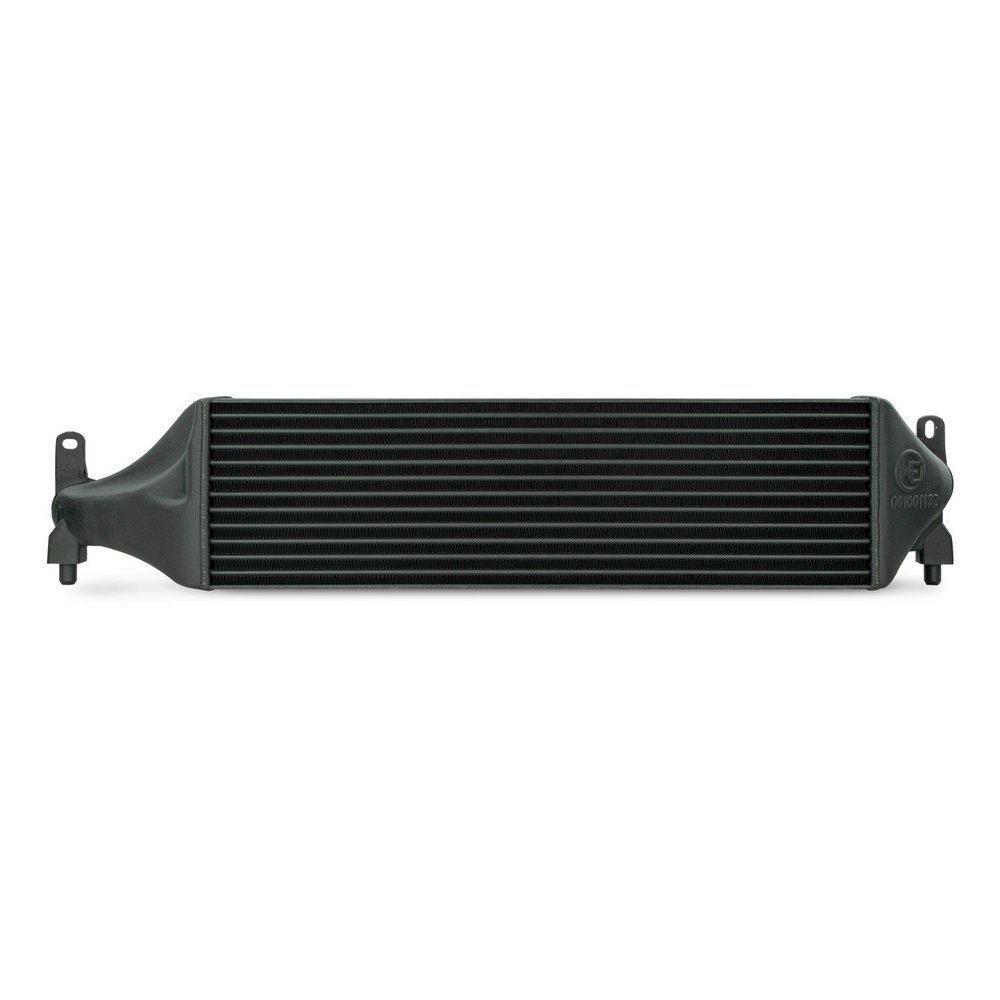

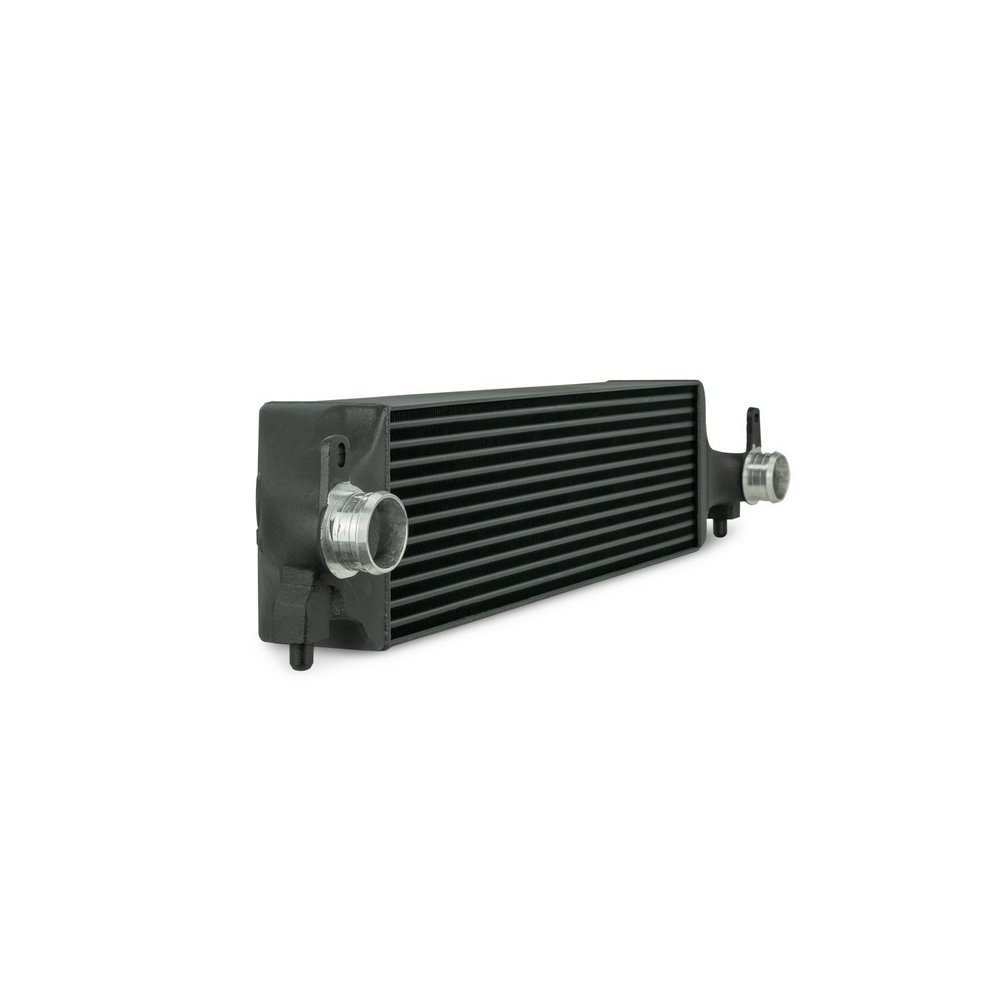

The WAGNERTUNING high-performance intercooler has got a new competition core (tube fin) with the dimensions 590 mm x 170 mm x 100 mm (10,03 liters) / 23,2Inch x 6,7Inch x 3,9Inch (612Inch³) , which was developed especially for the requirements of the Suzuki Swift. This high-performance core offers an 10 % larger frontal surface and 98 % more core volume compared to the stock intercooler.
The aluminium cast endtanks were designed in CAD and optimised in CFD simulations (for an ideal internal airflow). The result is a excellent cooling property with a minimal back pressure. That`s why this kit is perfect for racing use. An optimal cooling effect of the charged air with a significant increase in performance!
An anti-corrosion powder coating with perfect heat-conducting properties protects the WAGNERTUNING intercooler from all environmental influences, so a lasting and optimal cooling effect can be guaranteed. The installation is done by replacing the original intercooler and is easy to perform (plug and play). All our products are subject to a continuous quality monitoring.
Details stock intercooler:
V = 5,05 L / 308Inch³
A = 918 cm² / 142Inch²
Details WAGNERTUNING intercooler:
V = 10,03 L / 612Inch³ (+98%)
A = 1003 cm² / 155Inch² (+10%)
This kit comes with:
1 installation instruction
