Performance Intercooler Kit for N47D20(T‹2) and M47 engines fits into:
BMW 116d E81/E82/E87/E88 85KW/1116PS (2009-2013) only facelift-models
BMW 118d E81/E82/E87/E88 90-105KW/122-143PS (2003-2013) incl. facelift-models
BMW 120d E81/E82/E87/E88 120KW/163PS (2003-2007) M47
BMW 316d E90/E91/E92/E93 85KW/1116PS (2009-2012) only facelift-models
BMW 318d E90/E91/E92/E93 90-105KW/122-143PS (2005-2013) incl. facelift-models
BMW 320d E90/E91/E92/E93 110-120KW/150-163PS (2003-2007)
BMW X1 16d E84 85KW/116PS (2012-2014)
BMW X1 18d(x) E84 105KW/143PS (2010-2014)

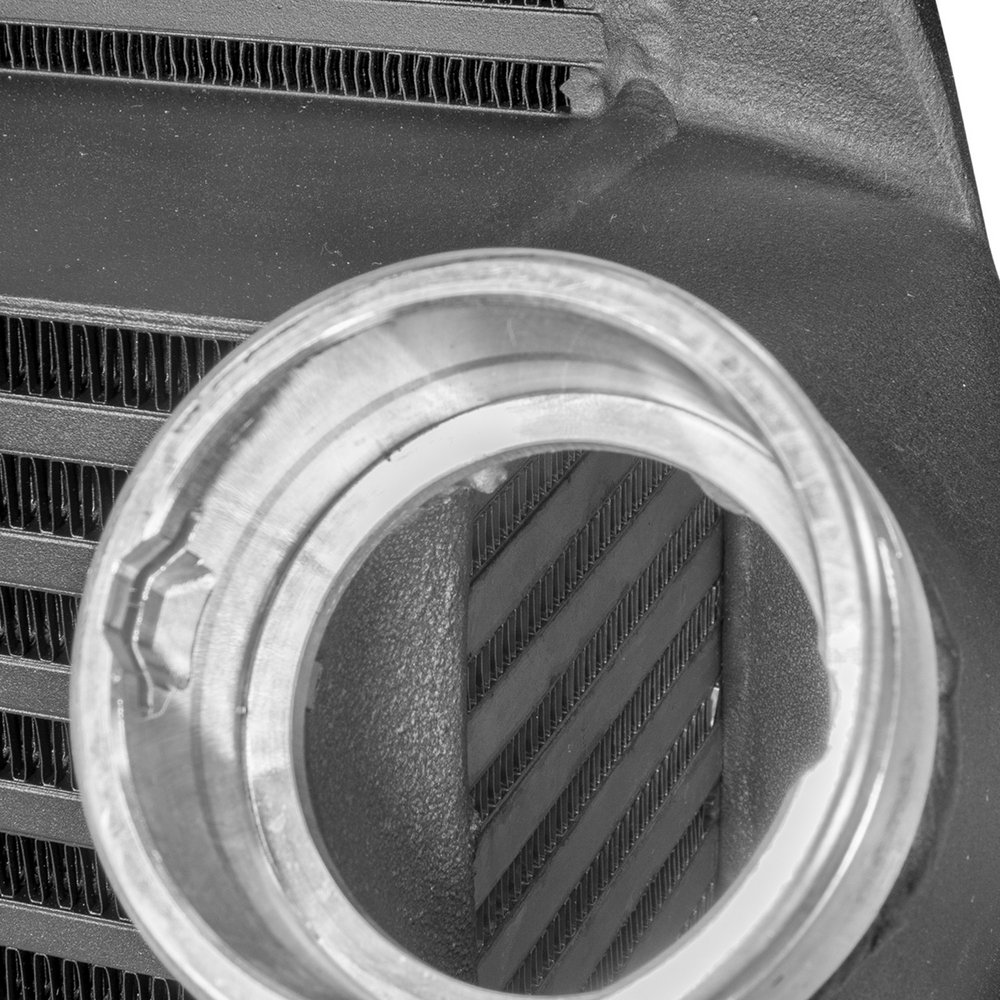

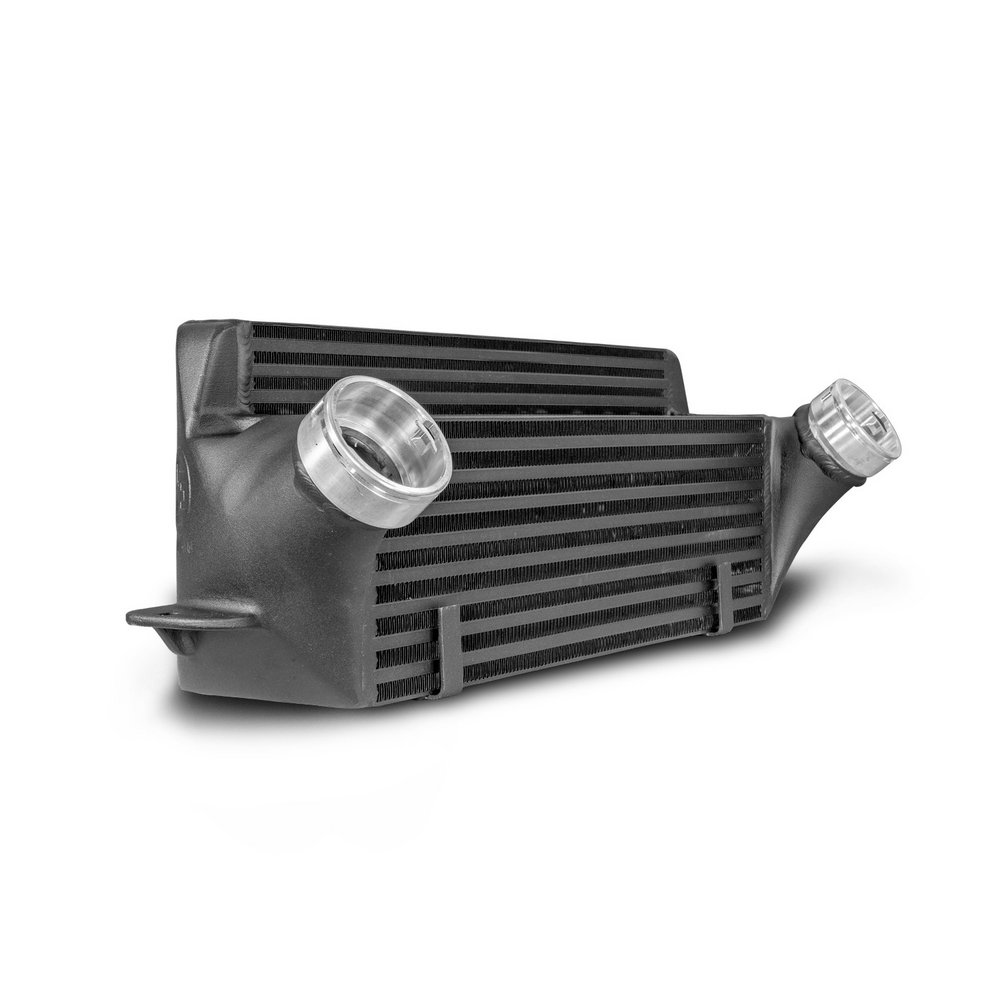

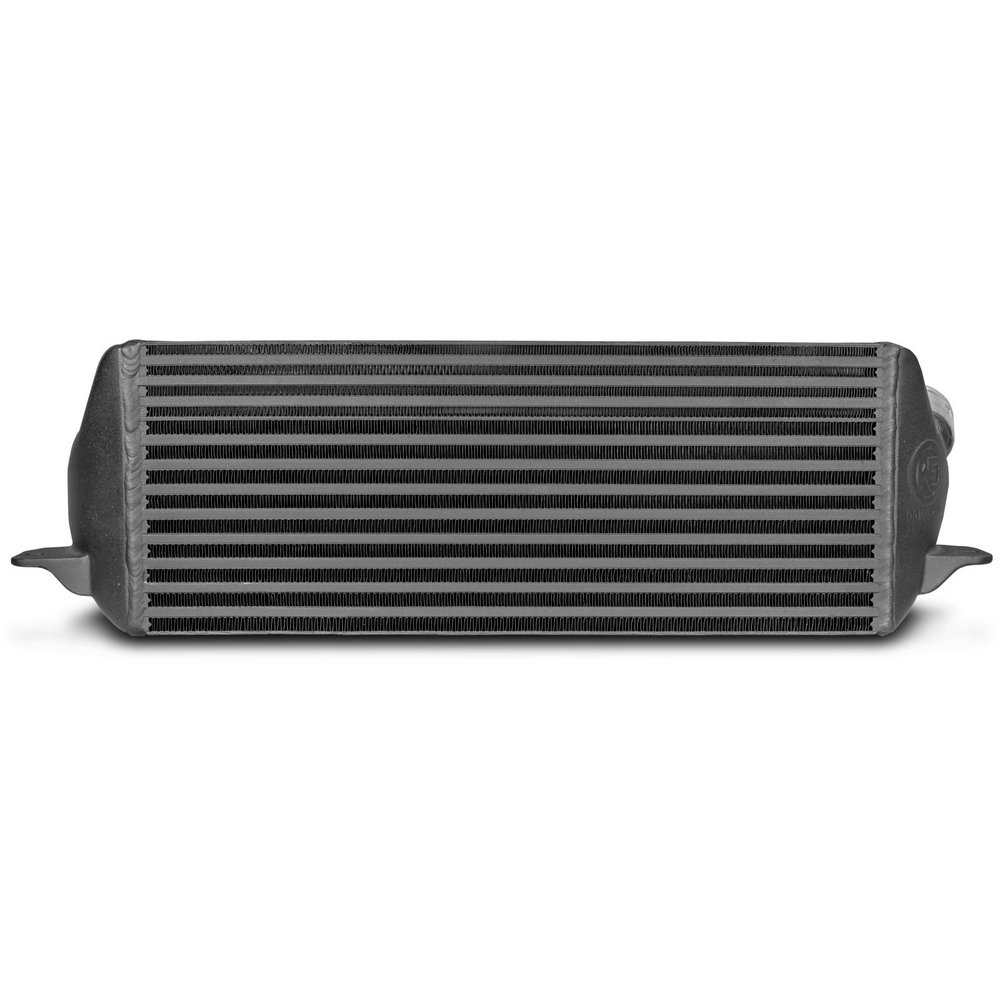

This Performance Intercooler has the following core size (520mm x 200mm x 120mm / stepped = 10.400 cm≥ ), providing a 104% larger frontal area and 140% more volume compared to the original intercooler. Our engineers have increased the intercooler core size and efficiency, as well as improved the end tank design to remove any OEM bottlenecks, resulting in increased flow rating and charge cooling properties. High performance intercooler core with turbulators in a stepped design (weight: 7,6kg). Constructed of the highest quality Bar and Plate intercooler cores combined with cast aluminium optimised by CAD. Flow analysis and simulations were created to optimise the design for best possible internal airflow. This intercooler is the best choice when it comes to performance gains and low intake temperatures. It features way more cooling performance and less pressure drop then the stock mounted intercooler.
An anti-corrosion powder coating with perfect heat-conducting properties protects the WAGNERTUNING intercooler from all environmental influences, so a lasting and optimal cooling effect can be guaranteed. The installation is done by replacing the original intercooler and is easy to perform (plug and play). All our products are subject to a continuous quality monitoring.

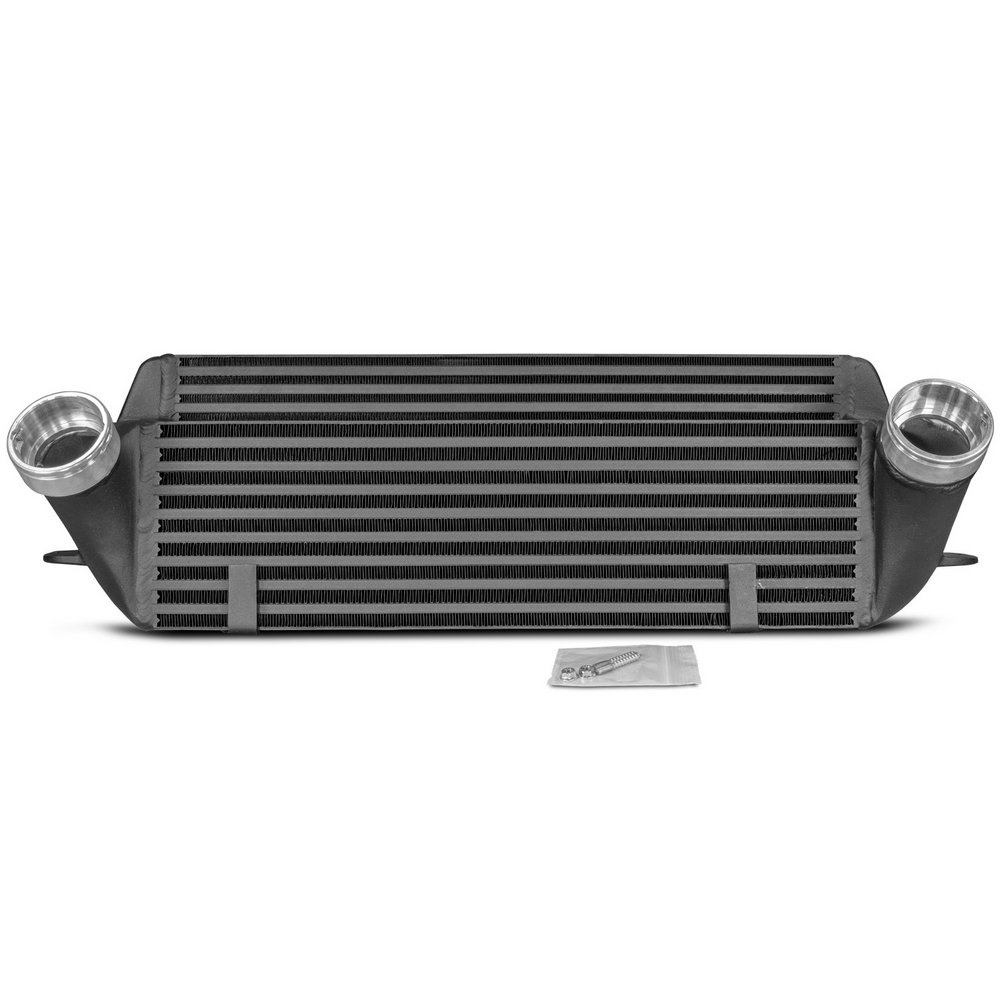

Kit comes with:
1x intercooler (black)
1x mounting material
1x installation instruction
