Product Code: 200001074
Additional stock: Available

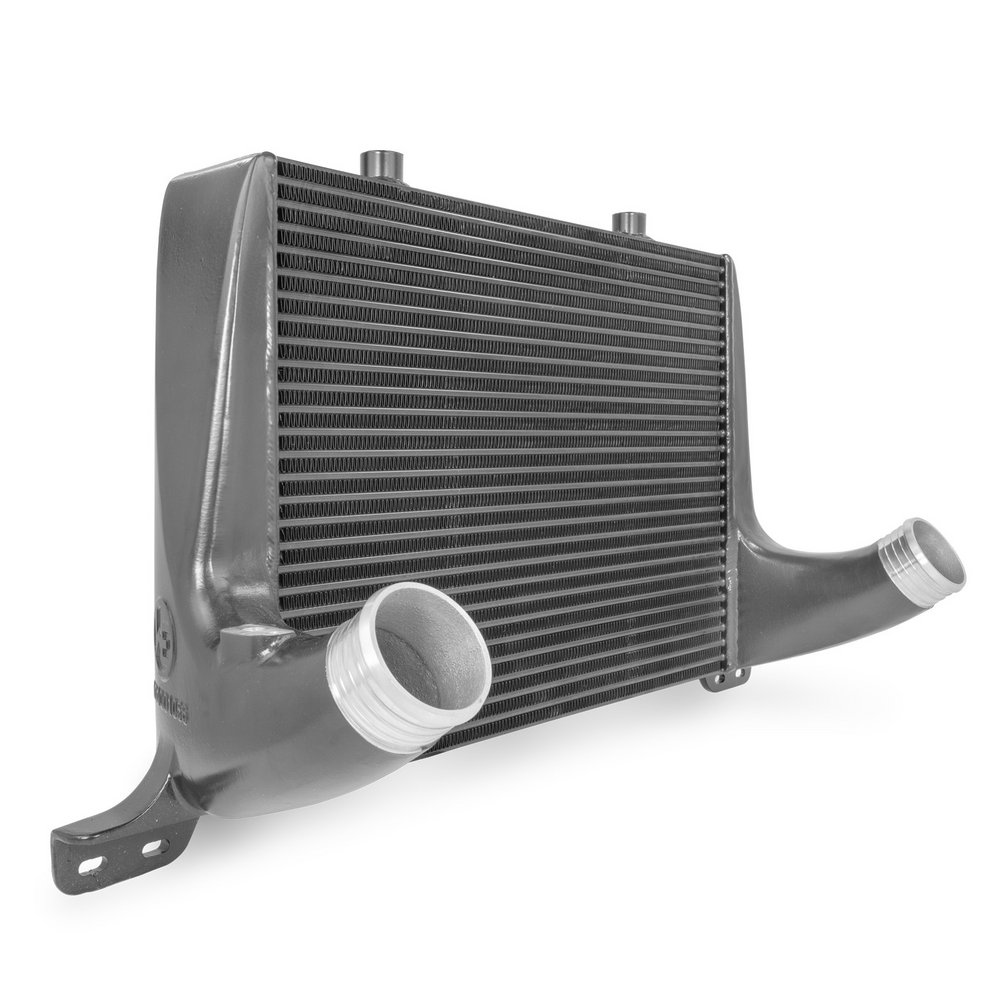

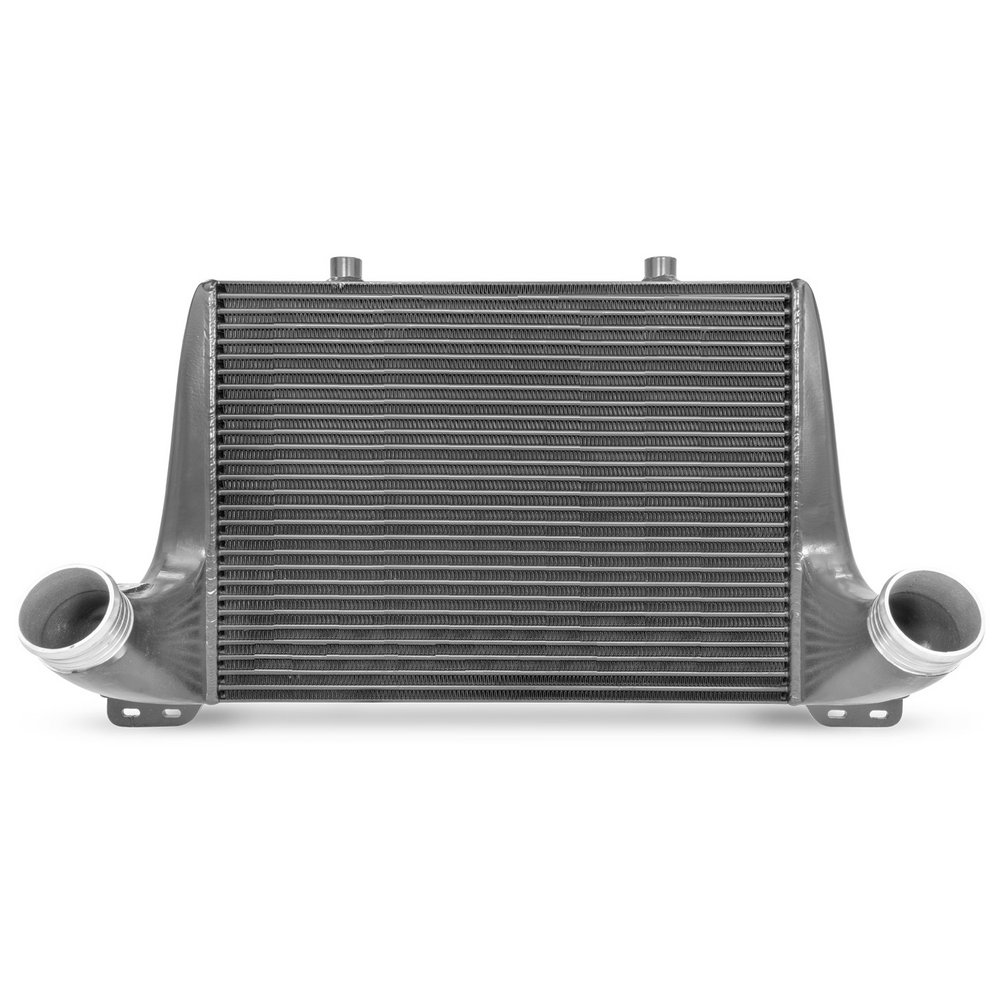

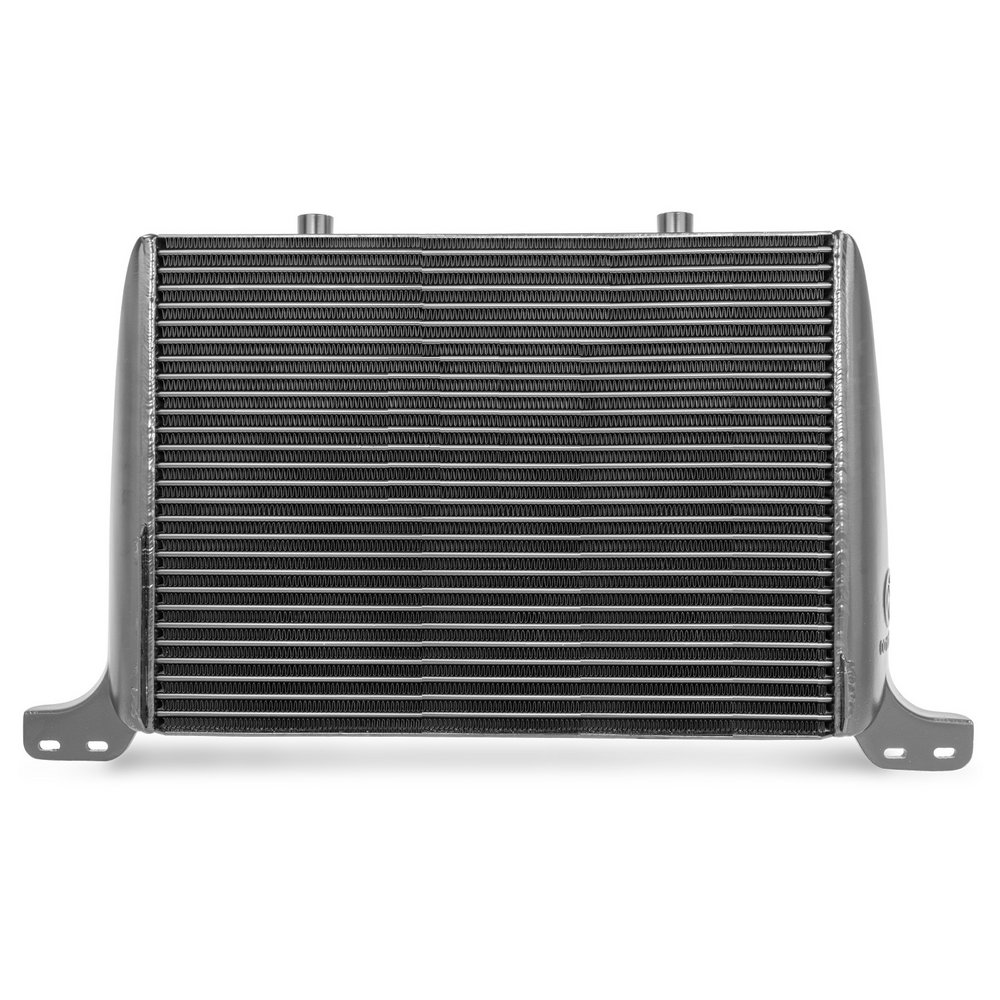

Intercooler upgrade kit EVO2 for Ford Mustang 2.3l EcoBoostThe competition EVO2 intercooler has the following core size 535mm x392mm x95mm = 19900cm³, providing a 175% greater frontal area and 226% more volume compared to the original intercooler.
Our engineers have increased the intercooler core size and efficiency, as well as improved the end tank design to remove OEM bottlenecks, resulting in increased flow rating and charge cooling properties. The weight of this Competition Intercooler is 14.2kg.
Constructed using the highest quality Tube Fin intercooler core combined with cast aluminium end tanks optimized in our CAD systems. Flow analyses and simulations were created to optimise the design for best possible Internal Airflow.
This intercooler is the best choice when it comes to performance gains and low intake temperatures. Anti Corrosion protective coating with perfect thermal heat dissipating character. Optimal cooling with clearly more power.

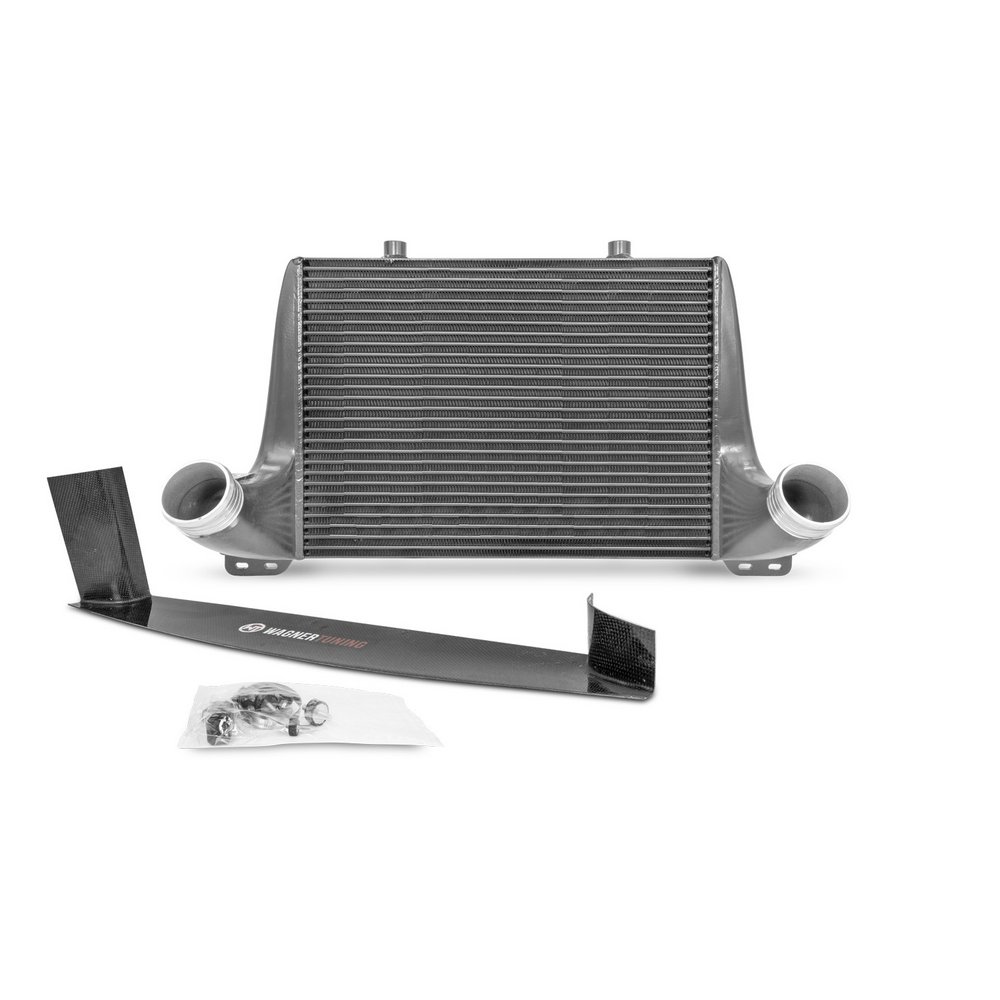

Kit is ready for installation (plug & play). This kit includes a suitable air shroud made of carbon, in order to ensure an optimum flow to the intercooler. Fitment is easy, replacing the OEM intercooler. All of our products undergo rigorous quality control.
Below is information direct from Germany regarding this product.
It may show additional information about fitment and specification.
COMPETITION INTERCOOLER KIT EVO2 FORD MUSTANG 2,3l EcoBoost 2015+ (incl. facelift models)Item no.: 200001074The Competition EVO2 intercooler has the following core size (535mm x392mm x95mm = 19,9L / 21,06Inch x 15,43Inch x 3,7Inch = 1214,37Inch³) providing a 175% larger cooling surface and 226% more volume compared to the stock mounted intercooler. Our engineers have increased the intercooler core size and efficiency, as well as improved the end tank design to remove any OEM bottlenecks, resulting in increased flow rating and charge cooling properties. This Ford Mustang intercooler uses our award winning Wagner Tuning Competition intercooler core, which is made specifically for this application. Constructed of the highest quality Tube and Fin intercooler cores combined with cast aluminum end tanks optimized by CFD for best possible internal airflow. With the help of additional air guides, inside inlet, an uniform filling of the intercooler is provided. To ensure optimum airflow to the intercooler this kit includes an air shroud, made of carbon fiber. On both sides the connection diameter increased to Ø70mm (2,756Inch). The result is excellent cooling properties with minimum pressure drop. So this kit is jalso ready for racing. Despite of it´s size the weight of the complete intercooler is only 14.7 kg. This kit is ready for installation and is easy to perform (1:1 exchange). Optimum cooling of the charged air with a clear increase in performance! All of our products undergo rigorous quality control.Dimensions stock Intercooler: 525mm x 145mm x 80mm V= 6,1 Liter/ 372,245Inch³ A= 76.100mm²/ 117,956Inch²kit comes with: 1 Intercooler 1 Carbon shroud 1 Mounting material 1 Installation instructioner
