Below is information direct from Germany regarding this product.
It may show additional information about fitment and specification.
Renault Megane 3 GT 2,0 16V TCe 180PS (2009-2012)
Renault Megane 3 GT 2,0 16V TCe 190PS (2012-2013)
Renault Megane 3 GT 2,0 16V TCe 220PS (2013-2016)
Renault Megane 3 RS 2,0 16V TCe 250PS (2009-2012)
Renault Megane 3 RS 2,0 16V TCe 265PS (2012-2015)
Renault Megane 3 RS 2,0 16V TCe 275PS (2014-)
Renault Megane 3 1,9 dCi 130PS (2008-2012)
Renault Megane 3 2,0 dCi 150PS (2010-2012)
Renault Megane 3 2,0 dCi 160PS (2009-2016)
Renault Megane 3 GT 2,0 dCi 163PS (2012-2016)

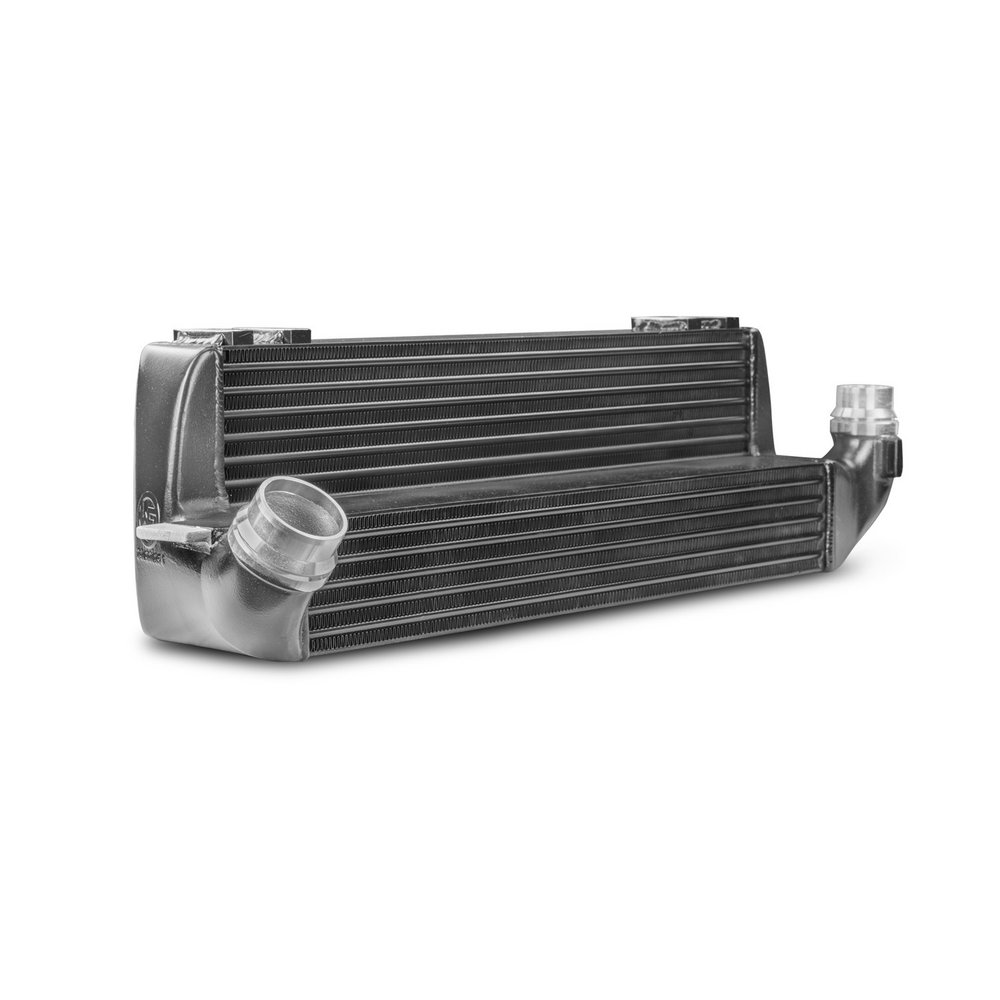

The competition intercooler has the following core size (620mm x206mm x150mm /stepped = 13.600cm³), providing a 68% larger frontalarea and 79% more volume compared to the original intercooler. Our engineers have increased the intercooler core size and efficiency, as well as improved the end tank design to remove any OEM bottlenecks, resulting in increased flow rating and charge cooling properties. Competition Intercooler core with turbulators (weight: 8,4kg). Constructed of the highest quality Tube and Fin intercooler cores combined with cast aluminum optimized by CAD. Flow analyses and simulations were created to optimise the design for best possible Internal Airflow. This intercooler is the best choice when it comes to performance gains and low intake temperatures. Anti Corrosion protective Coating with perfect thermal heat dissapating character. Optimal cooling with clearly more power. Kit is ready for installation (plug & play), using the stock plumming. Fitment is easy, replacing the OEM intercooler. All of our products undergo rigorous quality control.
Dimensions stock Intercooler:
Dimensions WAGNERTUNING EVO1 Intercooler:

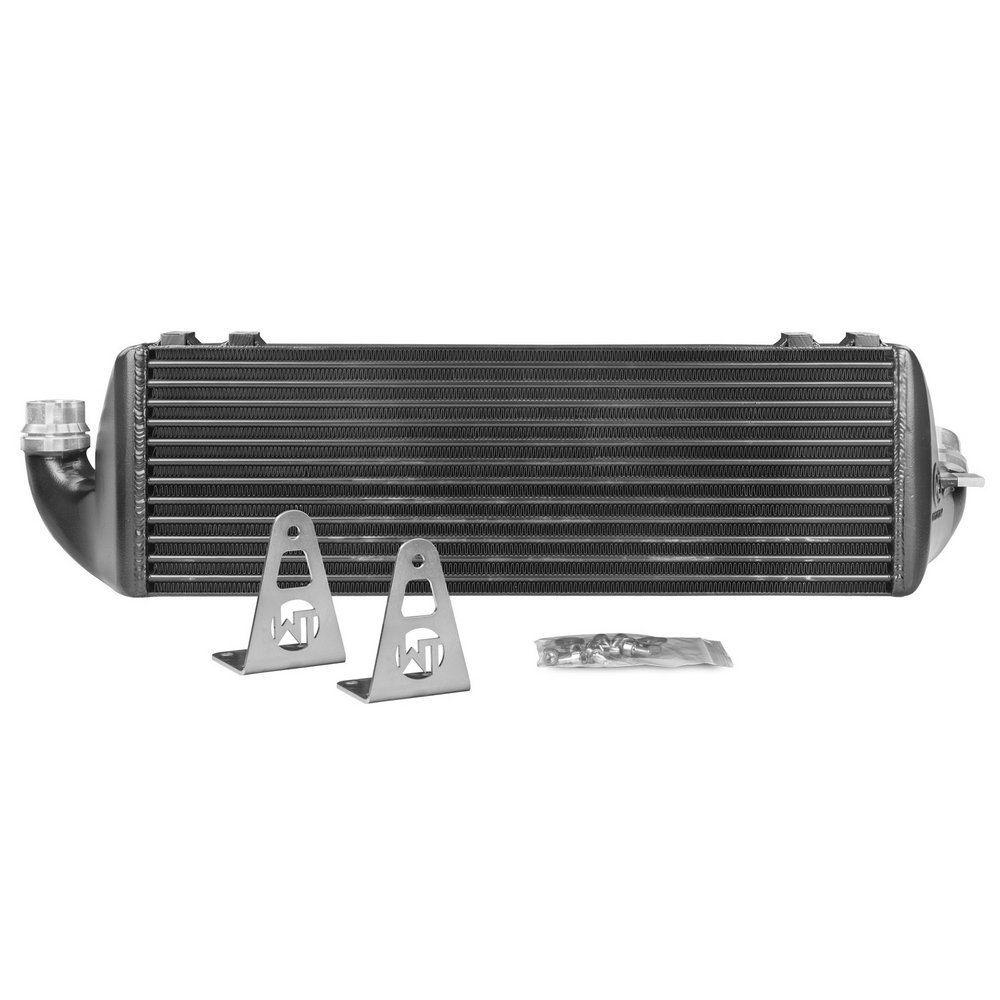

1 Intercooler painted black
1 Mounting material
1 Installation instruction
