Version with connection for aux Air Valve.

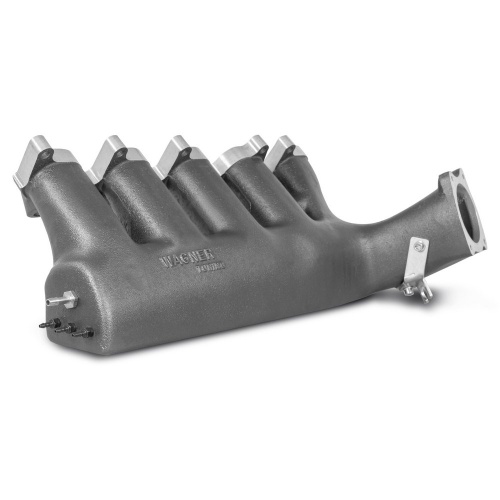

WAGNERTUNING aluminium cast intake manifolds are CAD designed and flow optimised for each vehicle to produce the ultimate in horsepower and torque from your vehicle. Constructed of 8.5 lbs. of high grade AlSi10Mg cast aluminium and then CNC machined to our exacting specifications, each manifold is a performance work of art.The intake comes with a special surface treatment, which is equal to the new TTRS intake manifold. The WAGNERTUNING intake manifold features:
Lower air temperature increased throttle response.
Smaller size when installed allows for larger intercoolers.
Tuned intake pulse reduces throttle body valve flutter.
Optimized airflow allowing for increased cylinder fill during intake cycle.
OEM+ fit and finish for easy installation.
Note: For ABY to ADU code engines a modified servo pump bracket is required. ( (WAGNER item number 001002015 order via eMail
As the throttle body location has been relocated to the front of the engine compartment, you must use the OEM Audi throttle cable part #893721555R. All connectors for vacuum and other ports are preinstalled using high grade steel hardware and fittings. Custom mounting of the vacuum and other ports are available (if feasible). (Please put your request in the notes field of your order)
The intake manifold is delivered ready to install, no other modifications needed!
Weight: 13 lbs.
Dimensional weight: 32.80 cm³/lbs. Dimensions: L 24 x W 16 x H 12
