Maximum performance and optimum cooling for your VW T6/T6.1 2.0 TDI with our Competition water cooler kit.The 2.0-liter TDI engine of the VW T6/T6.1 is equipped with an indirect charge air cooling circuit, which does not cool the charge air with ambient air as usual, but with its own cooling water circuit. A reduction in the cooling water temperature leads directly to an improved cooling performance of the charge air. This is where the advantages of our Wagner Tuning Upgrade water coolers come into play.
Our newly developed competition racing nets increase the radiator volume of the standard water cooler by an impressive 30%. The ratio between the inner and outer cooling surface ensures maximum heat transfer and at the same time allows sufficient airflow for adjacent components such as the engine water cooler. The increased cooling water volume means that the entire system thermal can be kept at a lower level over a longer period of time.
All Wagner Tuning water coolers are equipped with a thermally conductive anti-corrosion coating, which ensures a long-lasting cooling effect. The installation of the system is uncomplicated and almost plug & play thanks to our detailed installation instructions.
Prepare your VW T6/T6.1 2.0 TDI for maximum performance and optimum cooling with our competition water cooler kit.
Competition water cooler kit for the VW T6/T6.1 2.0 TDI is suitable for the following models:
Volkswagen T6 2.0 TDI: 62-110KW/84-150 PS (2016-2019)
Volkswagen T6.1 2.0 TDI: 66-110KW/84-150 PS (2019-)
Volkswagen T6 2.0BiTDI: 146-150KW/199- 204 hp (2016-2019)
Volkswagen T6.1 2.0BiTDI: 146-150KW/199- 204 hp (2019-)Dimensions OEM water cooler:
714 mm x 245 mm x 54 mm
V = 9.5 liters
A = 1750 cm²
Wagner Tuning water cooler dimensions:
710 mm x 311 mm x 56 mm
V = 12.4 liters (+30%)
A = 2208 cm² (+26%)
Part number 400001019Kit comes with:

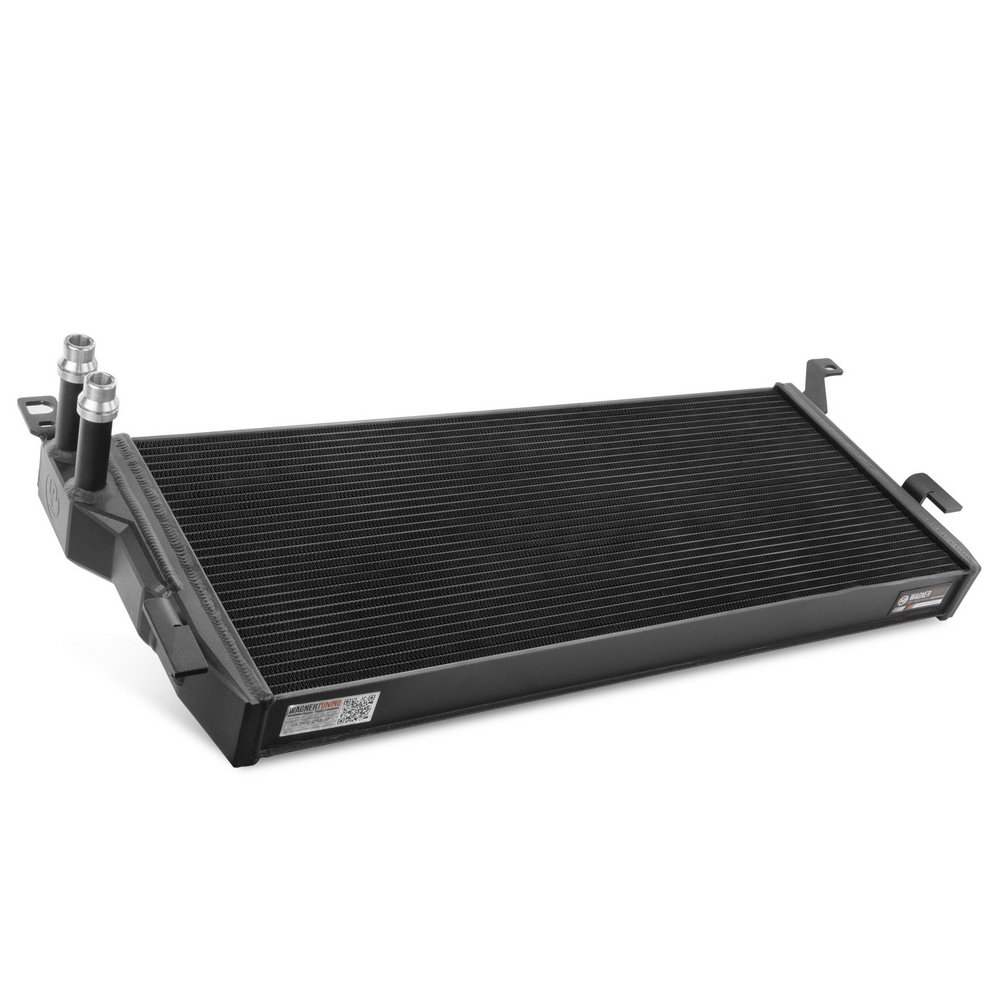

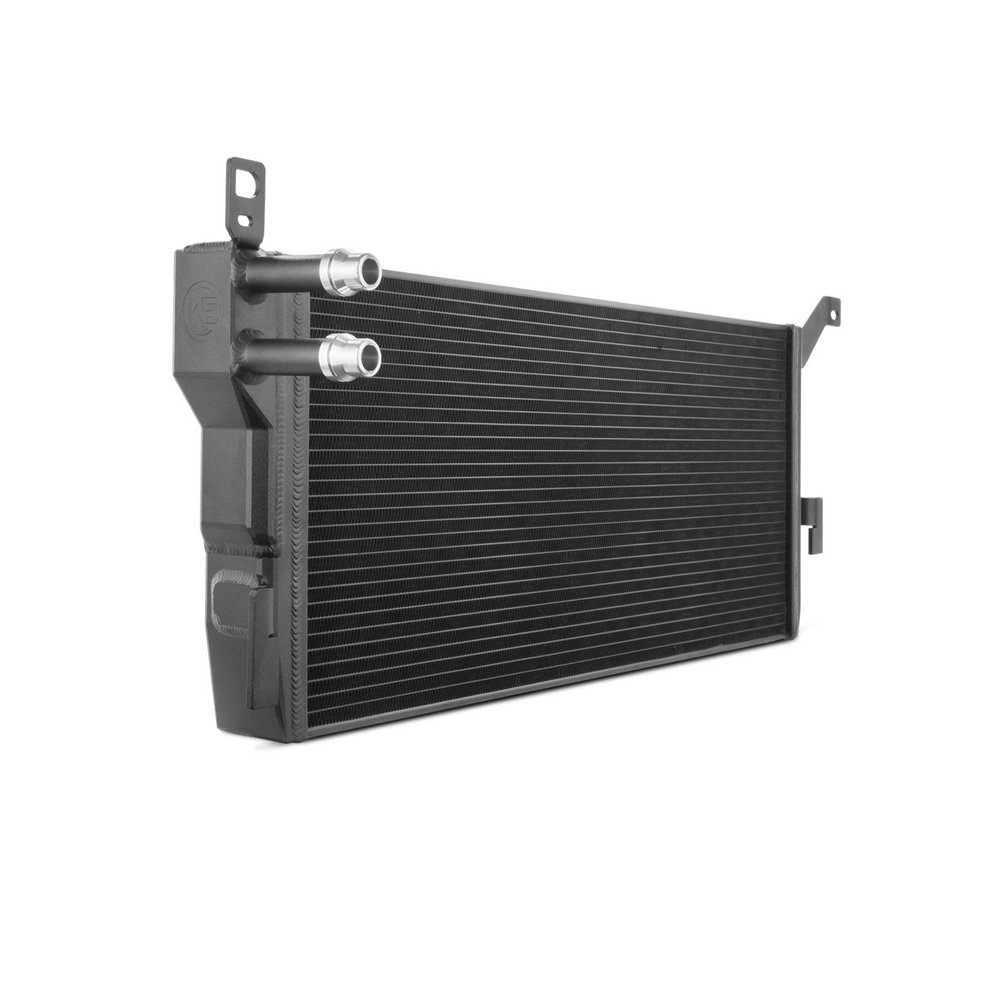

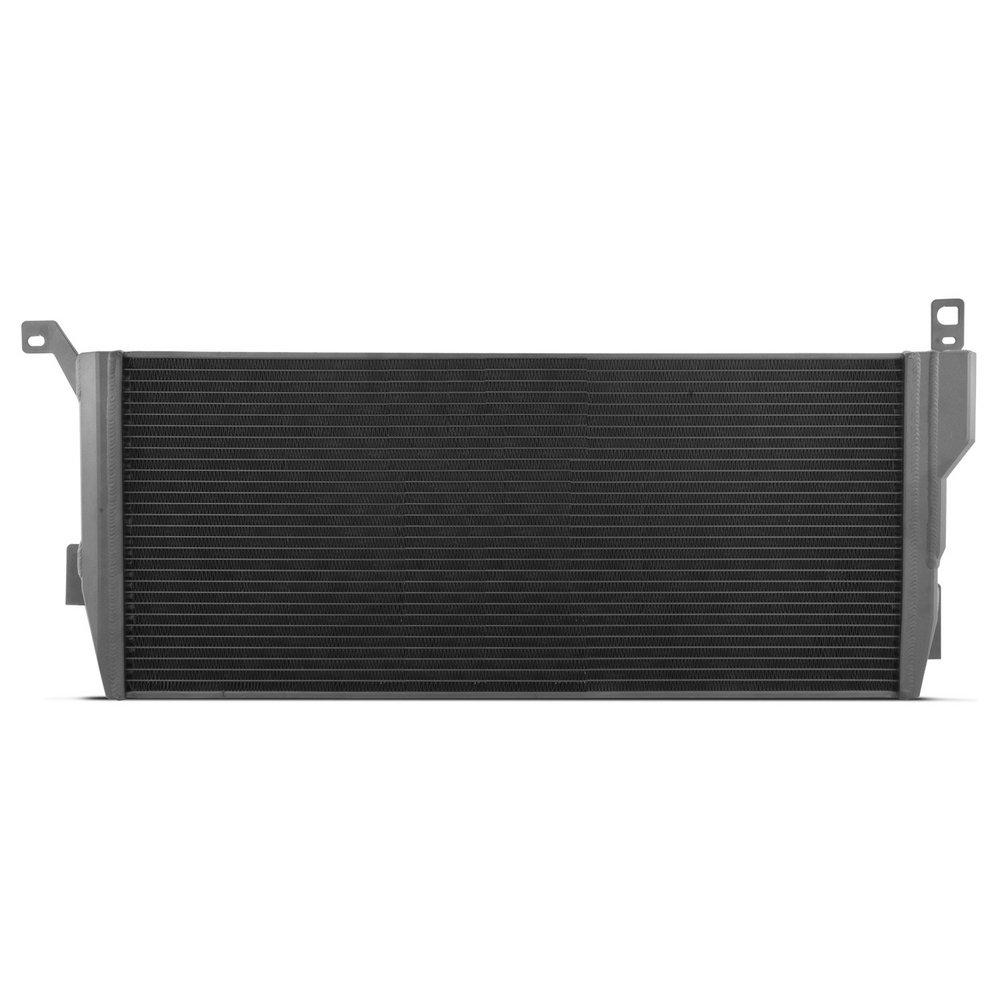

1x frontal water cooler, black coated (low-temperature circuit)
1x installation instructions
