VAG R32 M11 Upgrade Pro-Series 18.8 Cylinder Head Stud Set
Replacing the original cylinder head screws with high-strength Pro-Series 18.8 studs.
This is necessary when making large increases in performance, as the original cylinder head screws elongate during operation and the cylinder head can lift off.
The Pro-Series 18.8 stud bolts with a tensile strength of 1850 N / mm˛ provide a solution to this.
In addition, these stud bolts do not have to be replaced after dismantling, but can be reused.
Technical details:
Manufacturer part number: P101122010

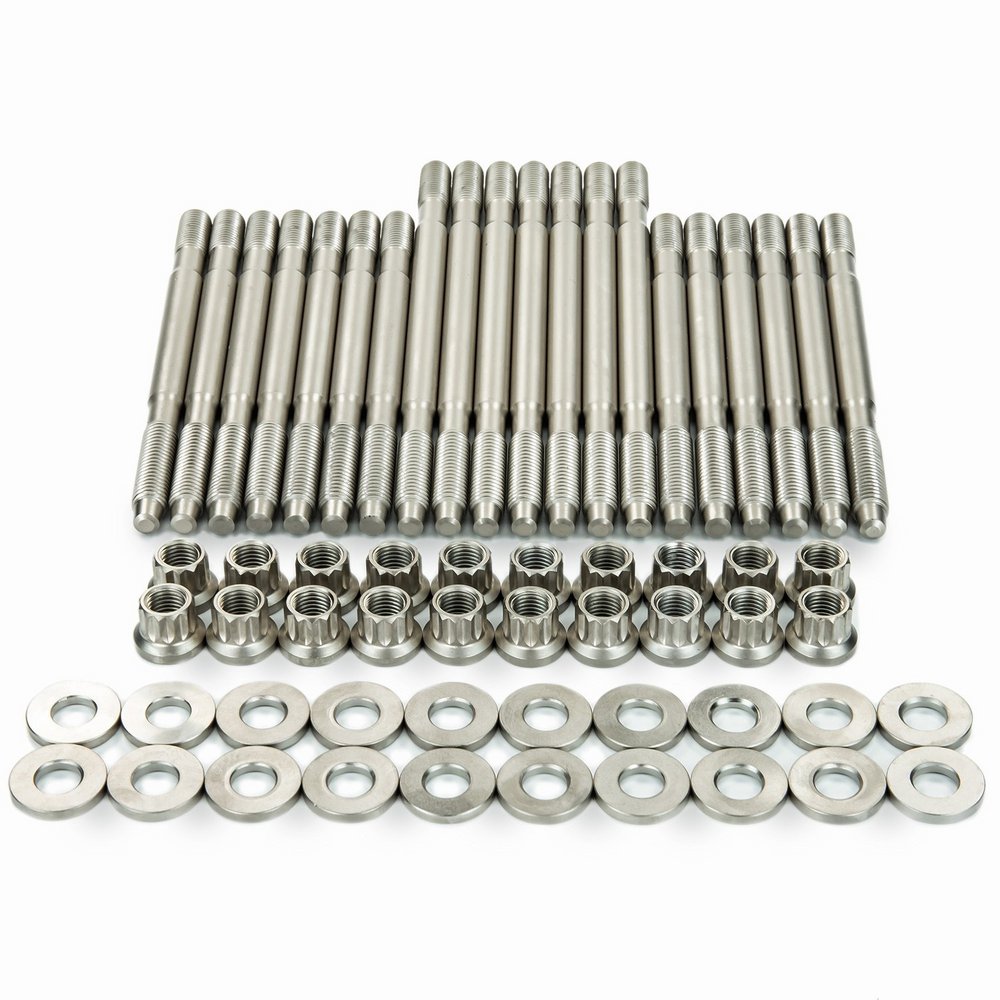

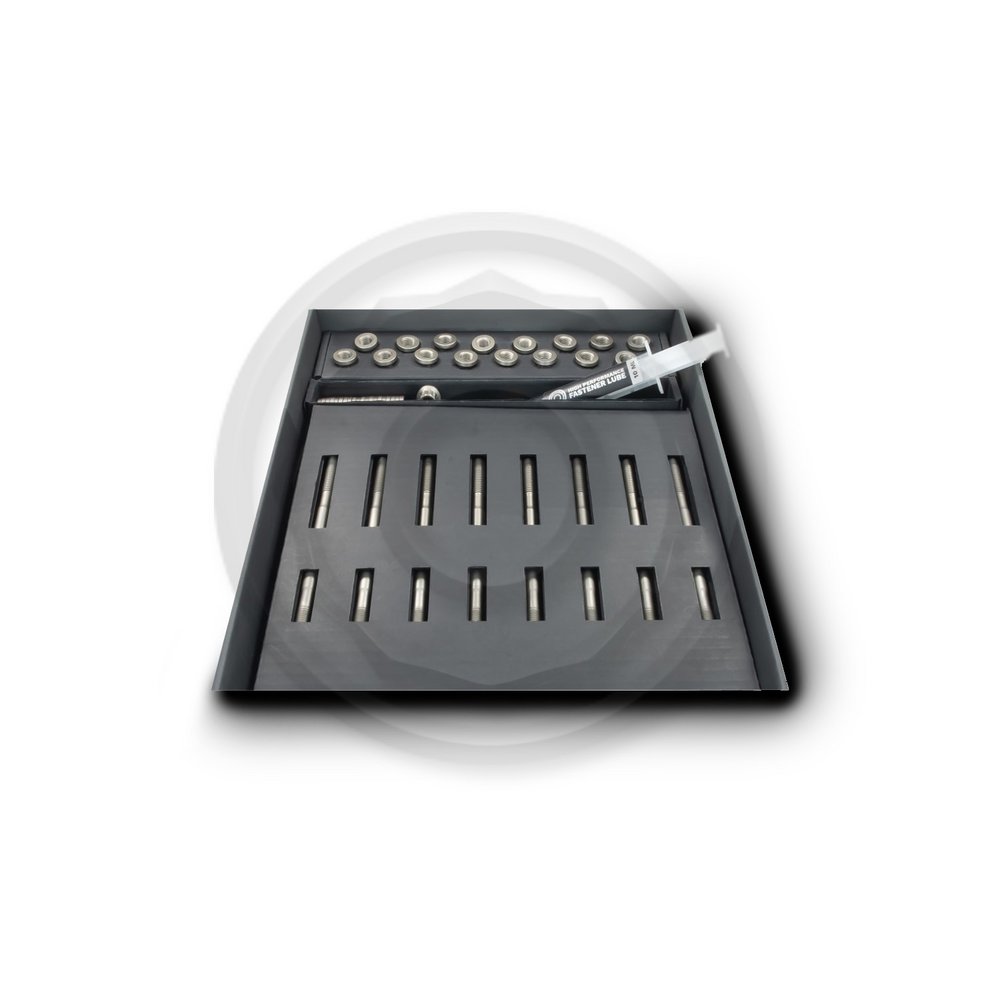

Kit content: 20 stud bolt (M11) / 20 nut (M11) / 20 washers / assembly paste / assembly instructions
Tensile strength: PS 18.8 steel / 1850+ N/mm˛ (270.000+PSI)
The Pro-Series 18.8 sets are high-strength stud bolts manufactured in Germany.
A special steel is used which, after tempering, has a tensile strength of 1850 + N / mm˛.

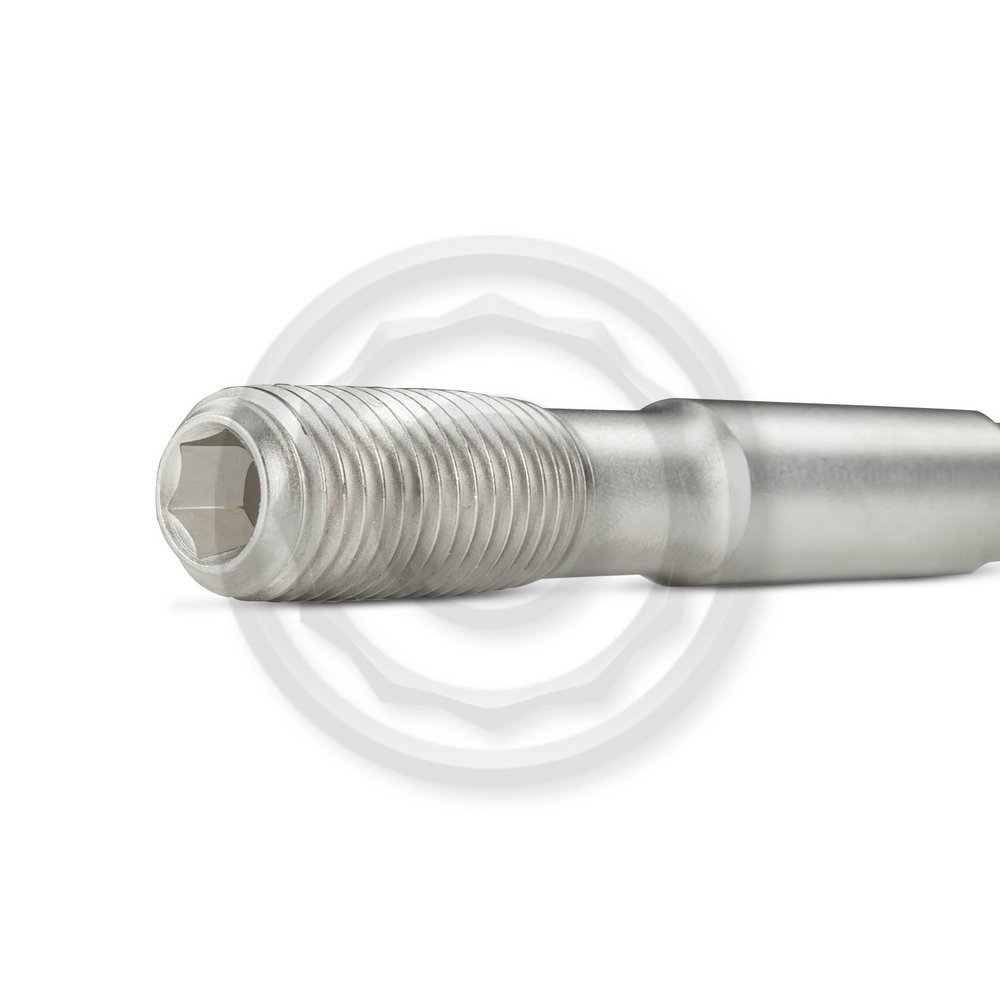

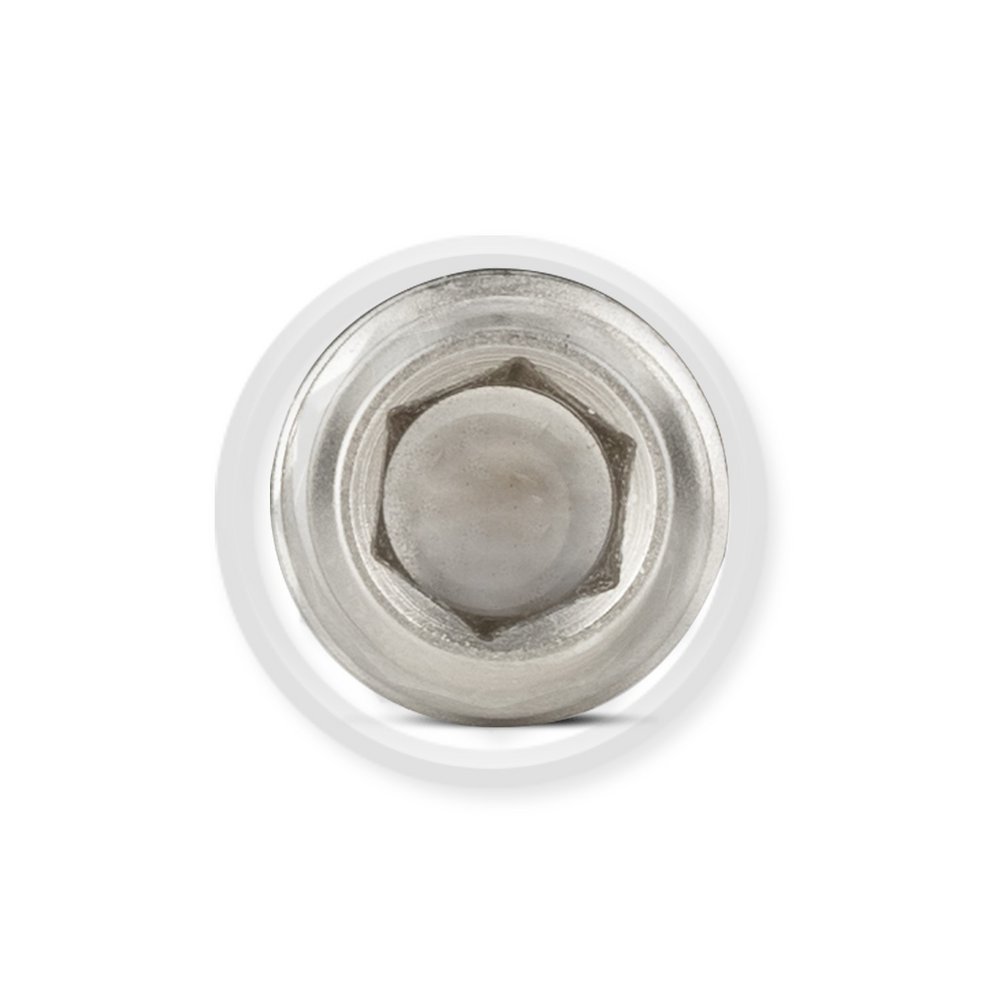

All threads are formed and not cut as usual. The so-called rolling of threads can increase the strength of the tooth flanks by around 30%. All Pro-Series products are supplied with a nickel coating or optional with a burnished protecting against corrosion in the long term, even under the toughest conditions. Pro-Series stud bolts have a hexagon socket drive on the head side for screwing in the stud bolts. Due to a cone on the engine block side of the bolt, these are not supported on the thread flanks when the nuts are tightened, but in the bore of the thread in the engine block. This support protects the threads when racing engines are frequently rebuilt.

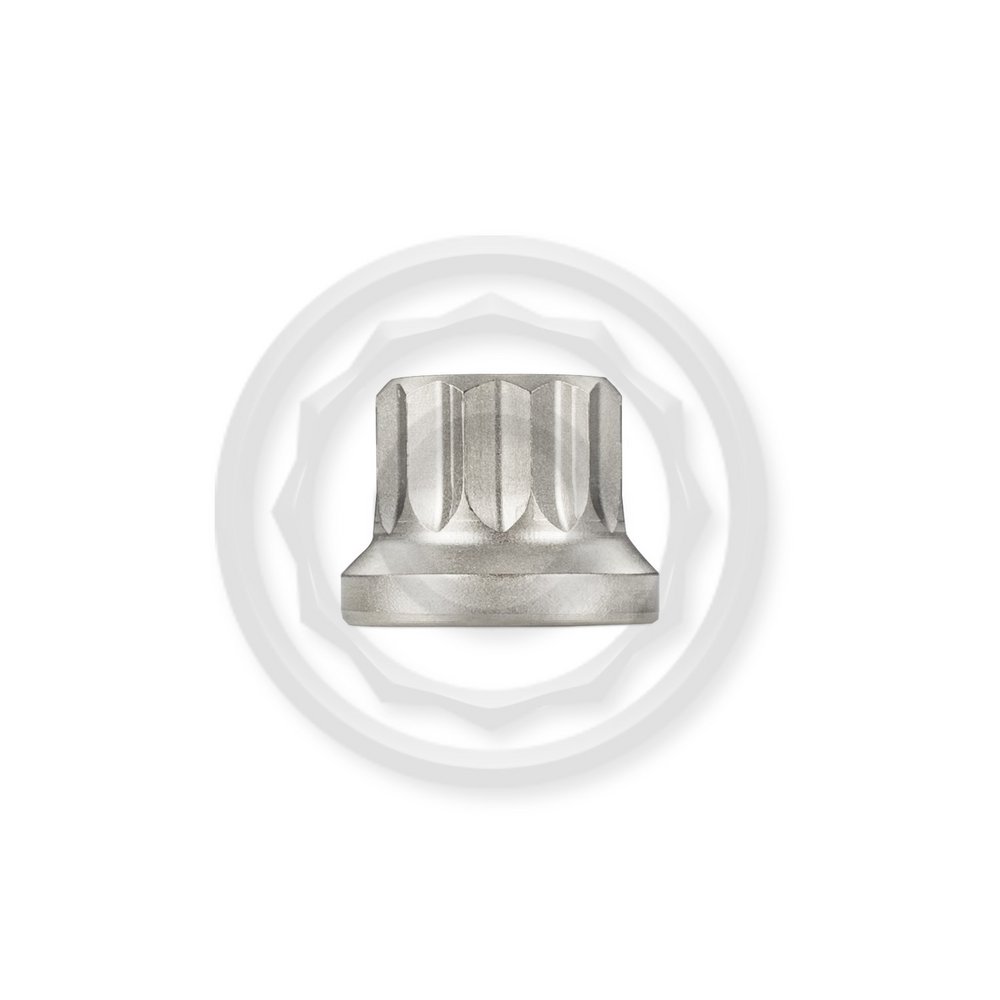

Pro-Series advantage over other manufacturers is the nuts and washers included in the set, these also have a tensile strength of 1850 N / mm˛.
Application list:
From MY 2003
Volkswagen Golf 4 R32 250PS
Volkswagen Golf 5 R32 250PS
Volkswagen T5 235PS
Volkswagen Touareg 250PS
Audi A3 8P 250PS
Audi TT 8N 250PS
Audi TT 8J 250PS
Porsche Cayenne 3.2 V6 250PS
