Competition INTERCOOLER KIT for Kia Optima GT 2,0TGDI
Kia Optima (JF) GT 2,0TGDI 175-180KW/238-245PS 2016-2019

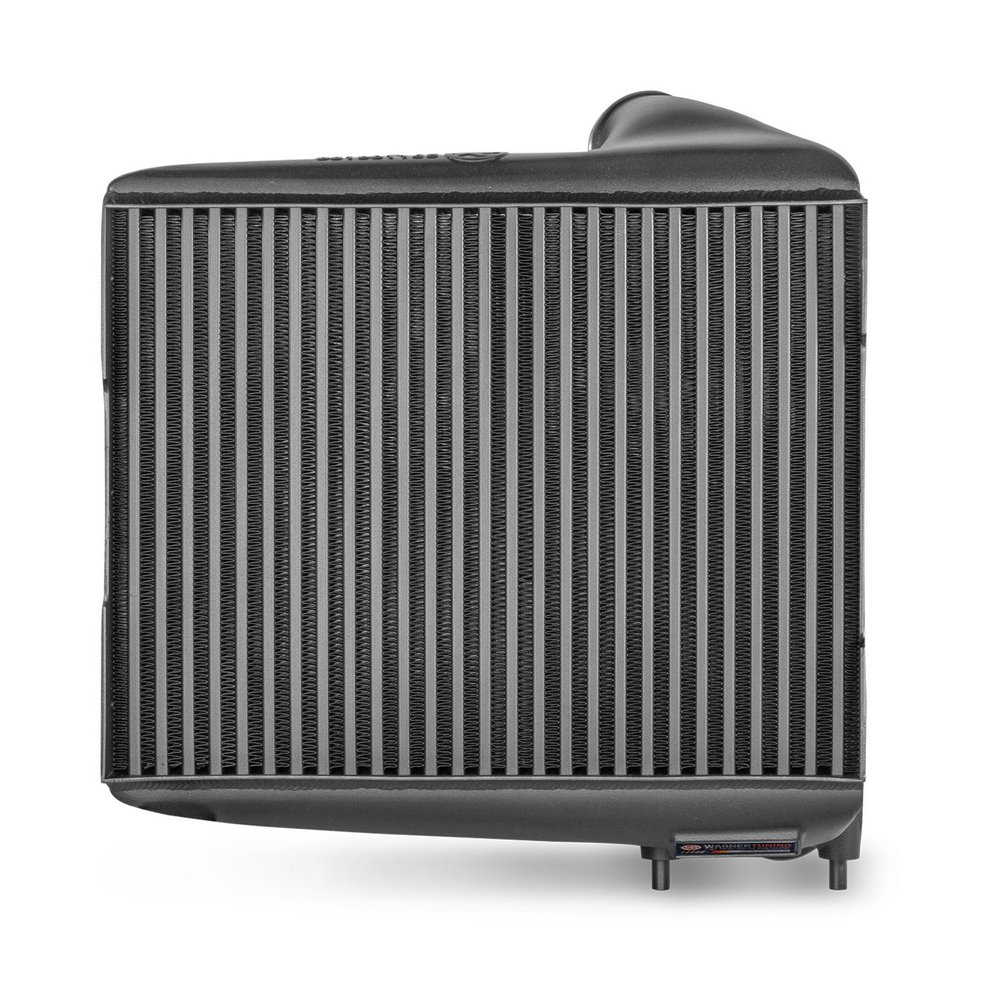

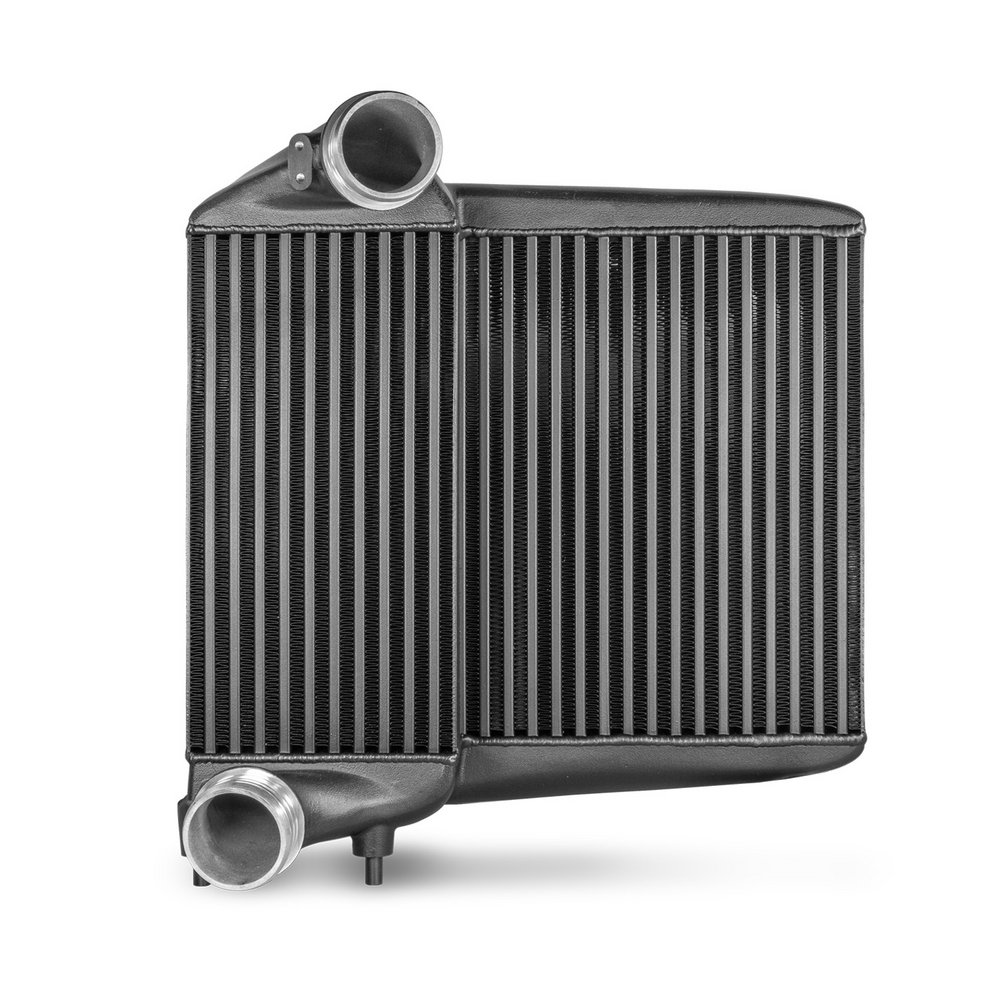

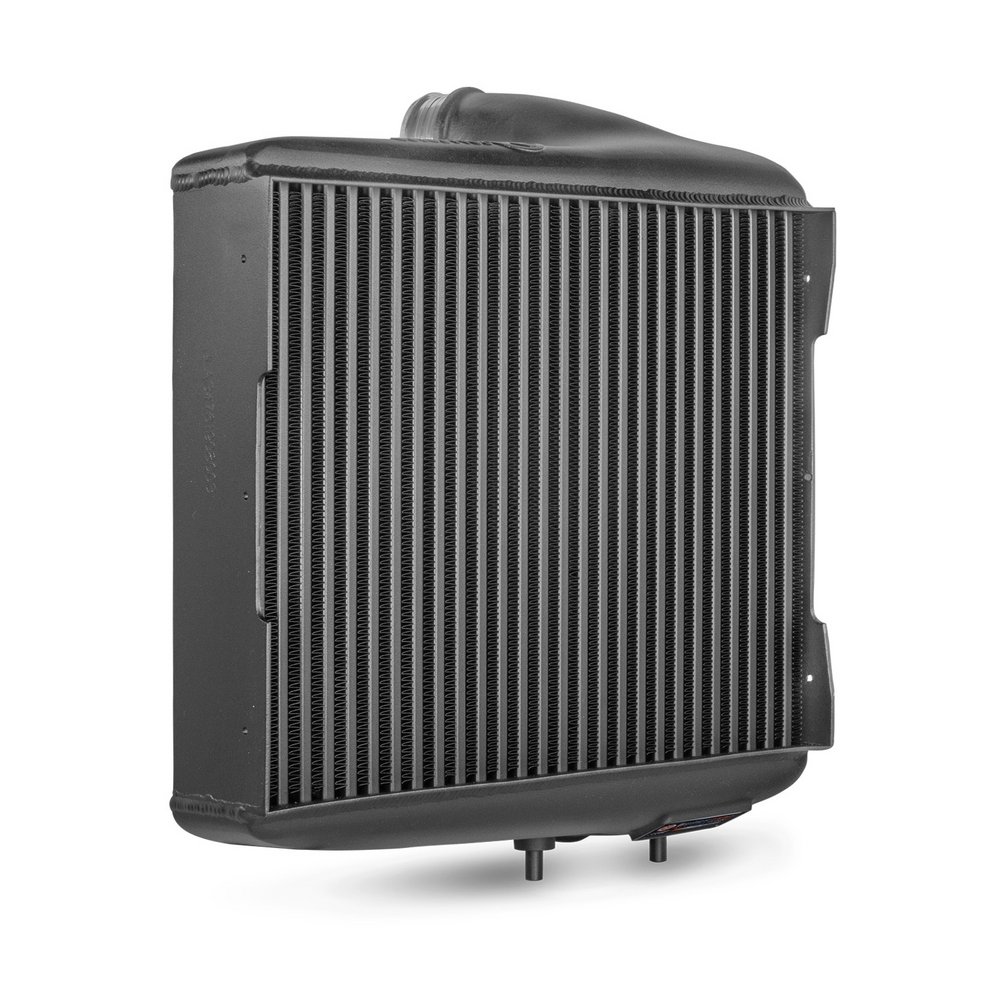

The WAGNERTUNING high-performance intercooler has got a new competition core (tube fin) with the dimensions 340 mm x 445 mm x 70 mm + 340 mm x 173 mm x 70 mm (stepped core: 14,71 liters) / 13,39Inch x 17,52Inch x 2,76Inch + 13,39Inch x 6,81Inch x 2,76Inch (stepped core: 897,66Inch³) , which was developed especially for the requirements of the Kia (Pro)Ceed GT. This high-performance core offers an 104 % larger frontal surface and 120 % more core volume compared to the stock intercooler.
The aluminium cast endtanks were designed in CAD and optimised in CFD simulations (for an ideal internal airflow). The result is a excellent cooling property with a minimal back pressure. The newly developed performance core provides the adjoining components (for example the watercooler) enough air flow by using a specially prepared air baffle. That`s why this kit is perfect for racing use. An optimal cooling effect of the charged air with a significant increase in performance!
An anti-corrosion powder coating with perfect heat-conducting properties protects the WAGNERTUNING intercooler from all environmental influences, so a lasting and optimal cooling effect can be guaranteed. The installation is done by replacing the original intercooler and is easy to perform (plug and play). All our products are subject to a continuous quality monitoring.

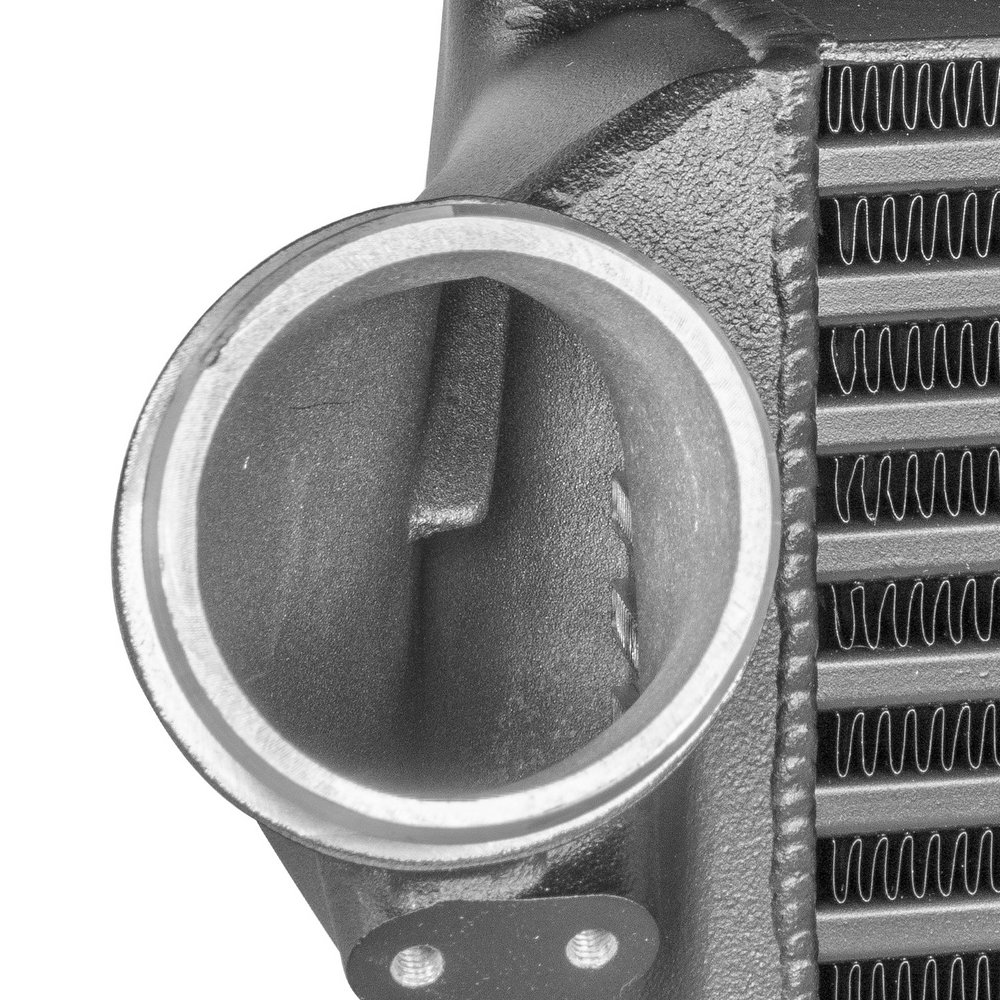

Inlet diameter: Ø65 mm ; Outlet diameter Ø65 mm
Details stock intercooler:
V = 6,68 L / 407,64Inch³
A = 742,1 cm² / 115,03Inch²
Details WAGNERTUNING intercooler:
V = 14,71 L / 897,66Inch³ (+120%)
A = 1513 cm² / 234,52Inch² (+104%)

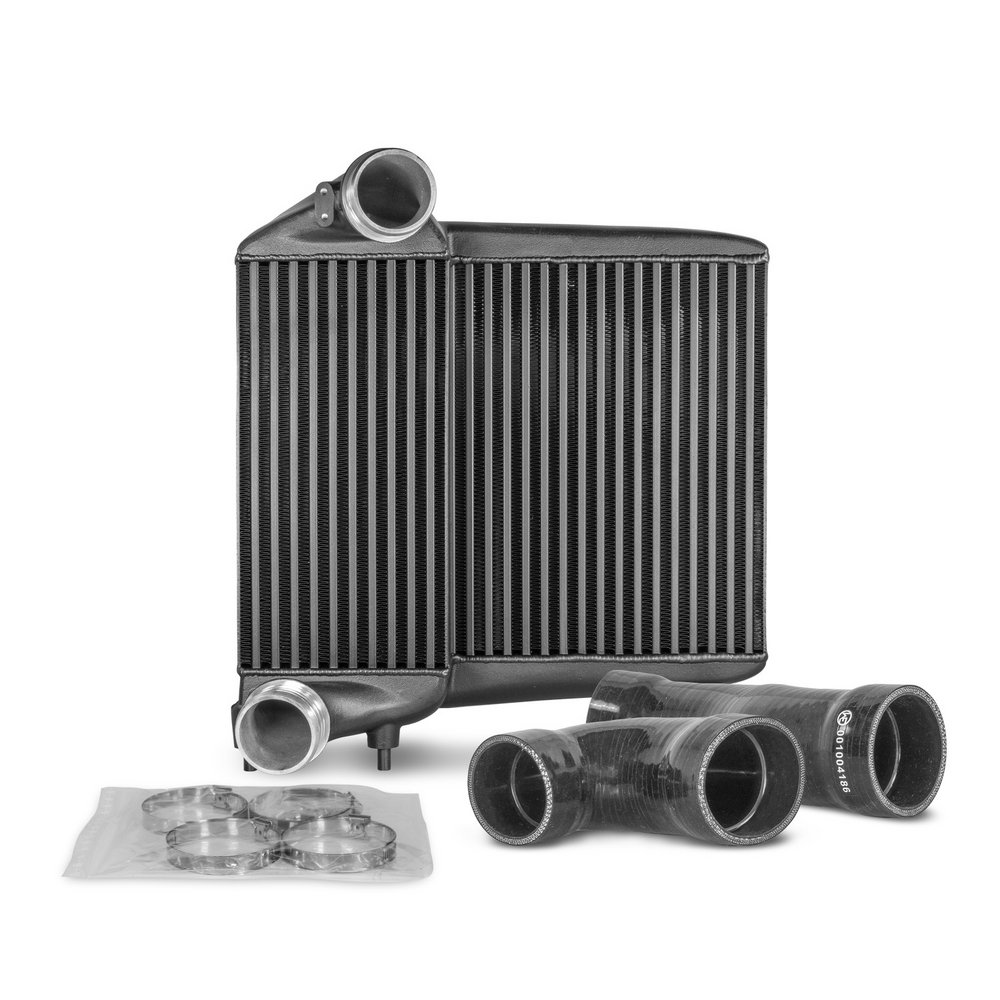

This kit comes with:
2 silicone hoses (black)
1 mounting material
1 installation instruction
