Honda Civic Type R Competition Intercooler Kit

Honda Civic Type R Competition Intercooler Kit
  Zoom
Your Price:  £789.99(Inc. 20% VAT)(£658.33 Exc. VAT)
+

Product Code:  200001086

Availability:

In stock for Express Delivery

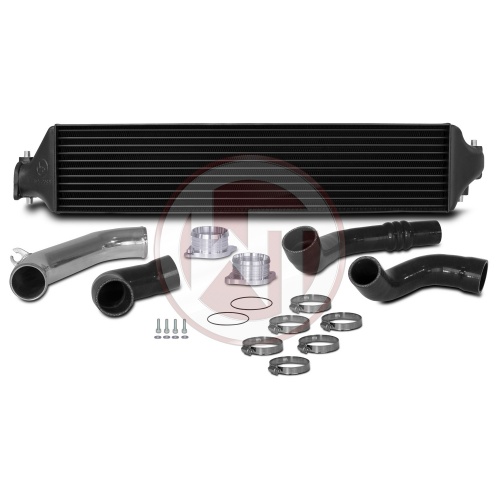

Competition Intercooler Kit for Honda Civic Type R

The high performance intercooler has the following core dimension (650mm x 175mm x 110mm) offering a 23% larger cooling surface and 101% more charge air volume compared to the original intercooler.

The newly developed tube and fin core allows sufficient airflow to the adjacent components (i.e. water radiator) and is also very lightweight. The end tanks of the intercooler are made of cast aluminium and have been optimized under flow analyses in the CAD system. Additional air guides inside the inlet aid uniform filling of the intercooler.

The result is excellent cooling with minimum back pressure. Perfect for fast road or race.

It is mounted using the original mounting points and is easy to perform (1:1 exchange).
Optimum cooling of the charged air with a clear increase in performance!

OEM Intercooler:
Cooling Surface 924cm²
Charge-Air-Volume 6,2L

WAGNERTUNING Intercooler:
Cooling Surface 1137,5cm²
Charge-Air-Volume 12,5L
Inlet 65mm Outlet 70mm

Packing List:
1 Intercooler
2 Silicone Hose
4 Hose Clamps

Below is information direct from Germany regarding this product.

It may show additional information about fitment and specification.


Competition Intercooler Kit for Honda Civic Type R FK2

The high performance intercooler has the following core dimension (650mm x 175mm x 110mm) and thus offers a 23% larger cooling surface and 101% more charge air volume compared to the original intercooler. The newly developed competition core granted the adjacent components, for example watercooler, sufficient airflow and is also very light. The endtanks of the intercooler are made of cast aluminum and have been optimized under flow analyzes in the CAD system. With the help of additional air baffles, inside inlet, providing for a uniform filling of the intercooler. The result is excellent cooling properties with minimum back pressure. So this kit is just the right thing for racing. It is mounted to the original mounting points and is easy to perform (1:1 exchange). Optimum cooling of the charged air with a clear increase in performance! Inlet 65mm Outlet 70mm

OEM Intercooler:
Cooling Surface 924cm?
Charge-Air-Volume 6,2L

WAGNERTUNING Intercooler:
Cooling Surface 1137,5cm?
Charge-Air-Volume 12,5L
Weight 10kg

Packing List:
1 Intercooler
2 Silicone Hose
4 Hose Clamps




Download install instructions >HERE<
