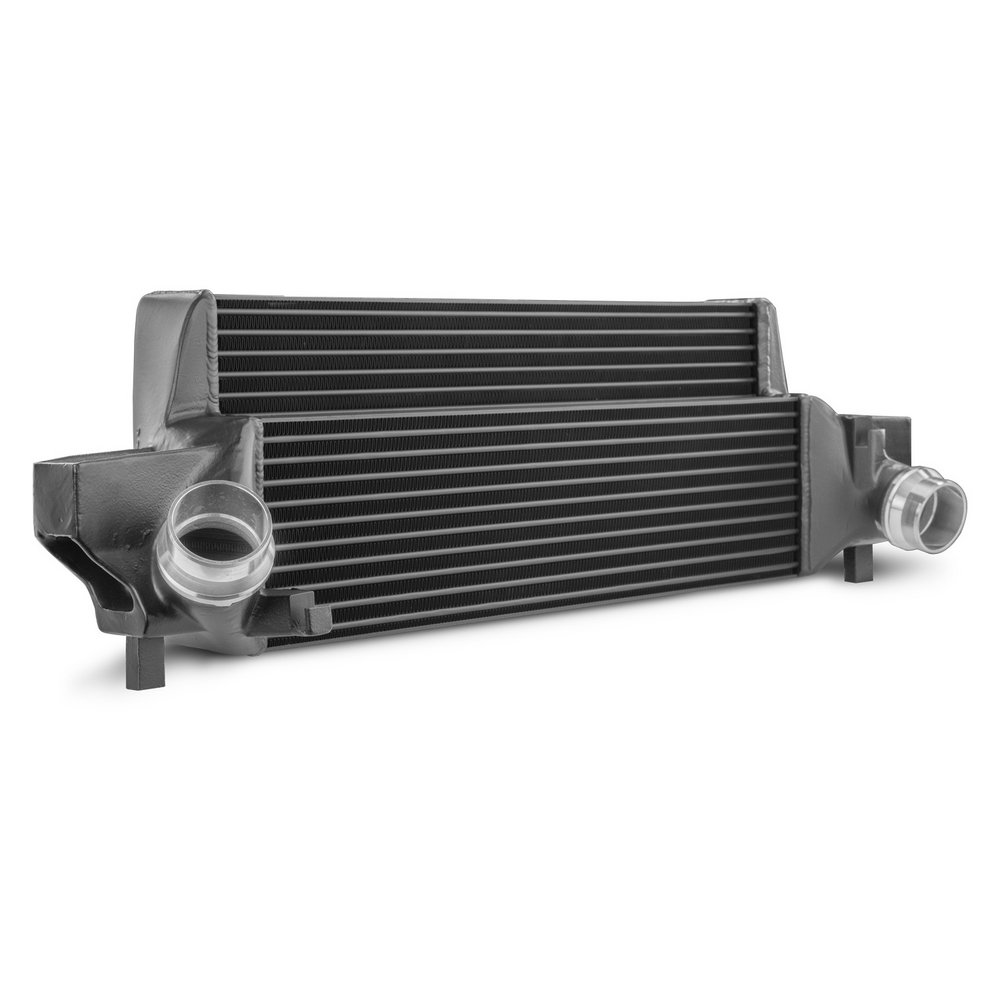

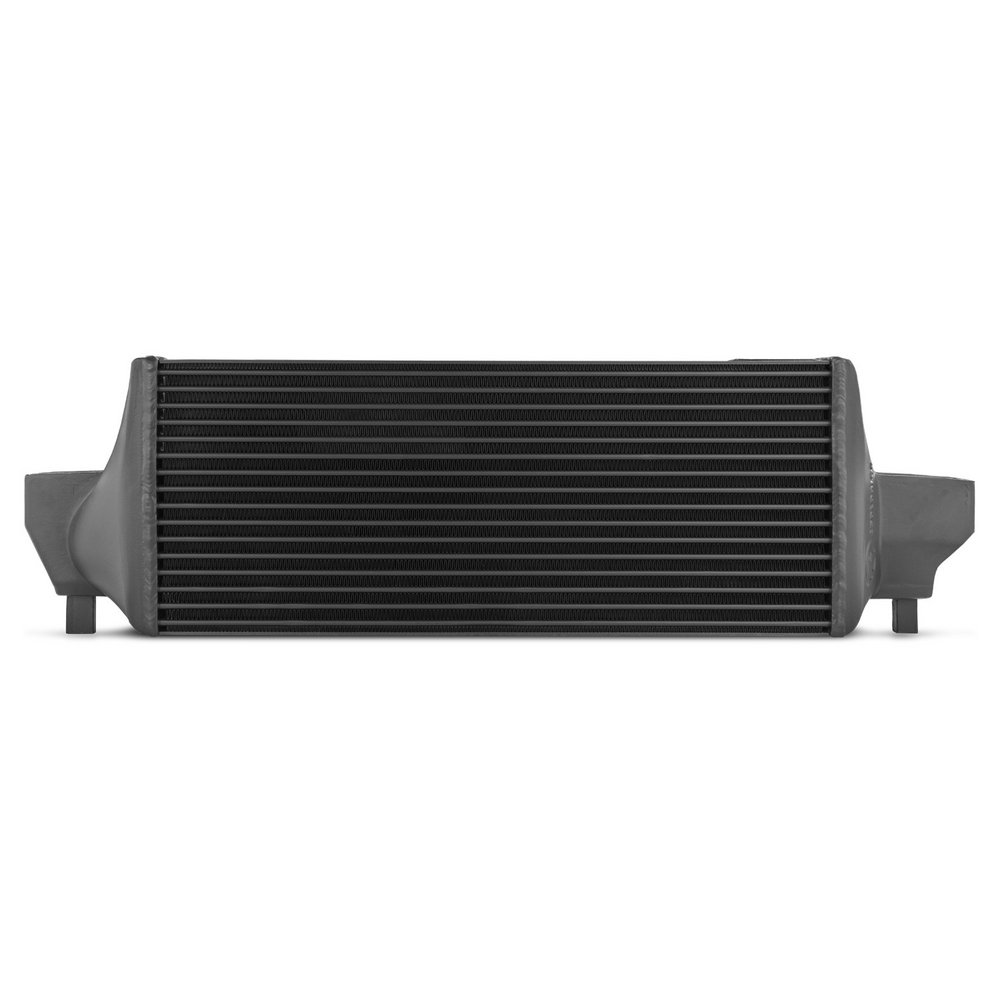

Mini F54/F55/F56 Competition Intercooler Kit

Mini F54/F55/F56 Competition Intercooler Kit
  Zoom
Your Price:  £669.99(Inc. 20% VAT)(£558.33 Exc. VAT)
+

Product Code:  200001076

Availability:

In stock for Standard Delivery

Intercooler upgrade kit EVO1 for the F Series Mini Cooper S(D)

Mini Cooper S F54/F55/F56 (141KW/192HP) 2014+
Mini One D F54/F55/F56 (70KW/95HP) 2014+
Mini Cooper D F54/F55/F56 (85KW/116HP) 2014+
Mini Cooper SD F54/F55/F56 (125KW/170HP) 2014+

NOT suitable for JCW Edition

The competition intercooler has the following core size 580mm x 231mm x 110mm [stepped] = 12600cm³, providing a 53% larger frontal area and 52% more volume compared to the original intercooler.

Our engineers have increased the intercooler core size and efficiency, as well as improving the end tank design to remove OEM bottlenecks, resulting in increased flow rating and charge cooling properties.

Competition Intercooler core with turbulators (weight: 9.2kg). Constructed of the highest quality Tube and Fin intercooler cores combined with cast freeform aluminium end tanks optimized in our CAD systems. Flow analyses and simulations were created to optimise the design for best possible internal airflow.

This intercooler is the best choice when it comes to performance gains and low intake temperatures. Far less pressure drop then OEM Intercooler. Anti Corrosion protective Coating with perfect thermal heat dissipating character. Optimal cooling with clearly more power. Kit is ready for installation (plug & play), using the stock plumbing. No cutting required. Fitment is easy, replacing the OEM intercooler. All of our products undergo rigorous quality control.

Dimensions stock Intercooler:
585mm x150mm x 95mm
V=8.3 Litre
A=877 cm²

Dimensions WAGNERTUNING Intercooler:
580mm x 231mm x110mm /stepped
V=12,6 Litre
A=1340 cm²

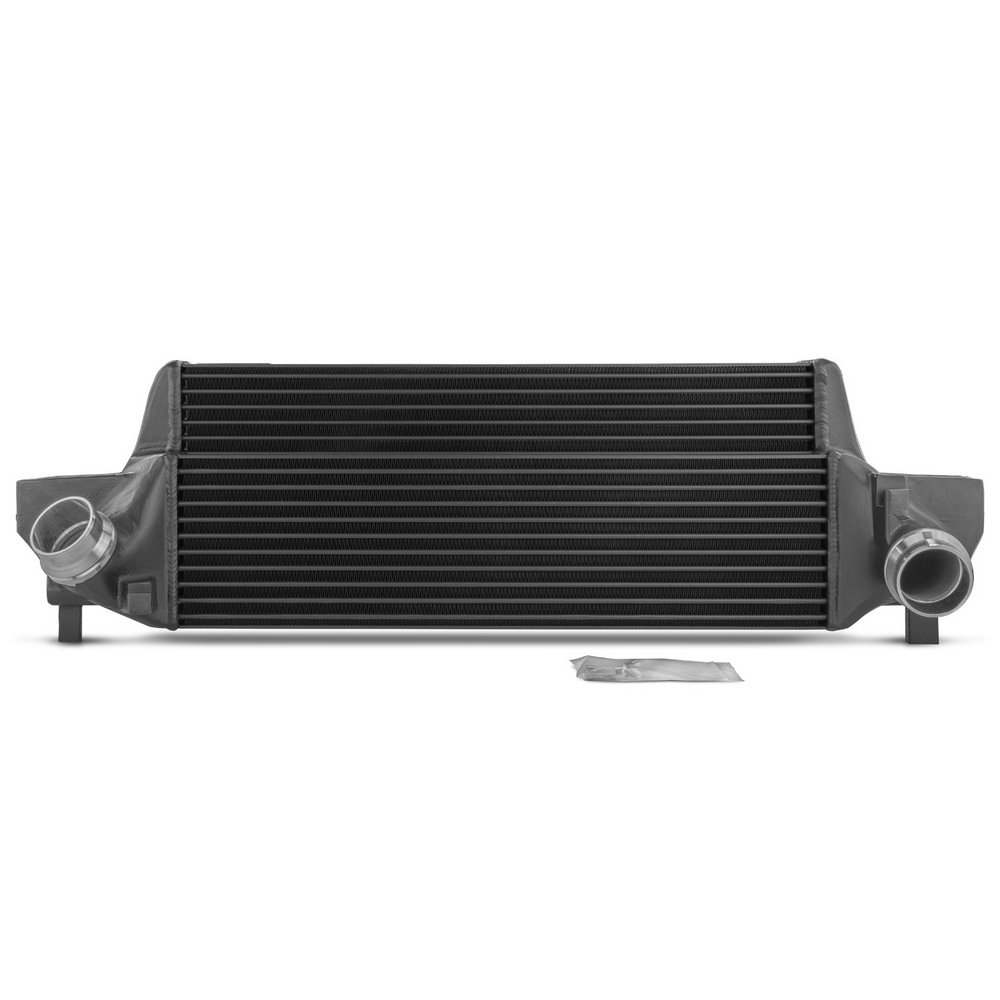

Package:
1 Intercooler painted black
1 Mounting material
1 Installation instructions



Below is information direct from Germany regarding this product.

It may show additional information about fitment and specification.

Competition intercooler upgrade kit plug and play suitable for:

Mini Cooper S F54/F55/F56/F57/F60 (141KW/192HP) 2014+
Mini One D F54/F55/F56 (70KW/95HP) 2014+
Mini Cooper D F54/F55/F56 (85KW/116HP) 2014+
Mini Cooper SD F54/F55/F56 (125KW/170HP) 2014+

does not fit in JCW Edition


The competition intercooler has the following core size (580mm x 231mm x 110mm [stepped] = 12.600cm?), providing a 53% larger frontalarea and 52% more volume compared to the original intercooler. Our engineers have increased the intercooler core size and efficiency, as well as improved the end tank design to remove any OEM bottlenecks, resulting in increased flow rating and charge cooling properties. Competition Intercooler core with turbulators (weight: 9,2kg). Constructed of the highest quality Tube and Fin intercooler cores combined with cast aluminum optimized by CAD. Flow analyses and simulations were created to optimise the design for best possible Internal Airflow. This intercooler is the best choice when it comes to performance gains and low intake temperatures. A lot less pressure drop then OEM Intercooler. Anti Corrosion protective Coating with perfect thermal heat dissapating character. Optimal cooling with clearly more power. Kit is ready for installation (plug & play), using the stock plumming. No cutting required. Fitment is easy, replacing the OEM intercooler. All of our products undergo rigorous quality control.

Dimensions stock Intercooler:
585mm x150mm x 95mm
V=8,3 Liter
A=877,5 cm?

Dimensions WAGNERTUNING Intercooler:
580mm x 231mm x110mm /stepped
V=12,6 Liter
A=1340 cm?

Package:
1 Intercooler painted black
1 mounting Material
1 installation instruction
